Application:
Membrane switch, glass cover, acrylic board, conductive film, composite board back cover and so on.
Features:

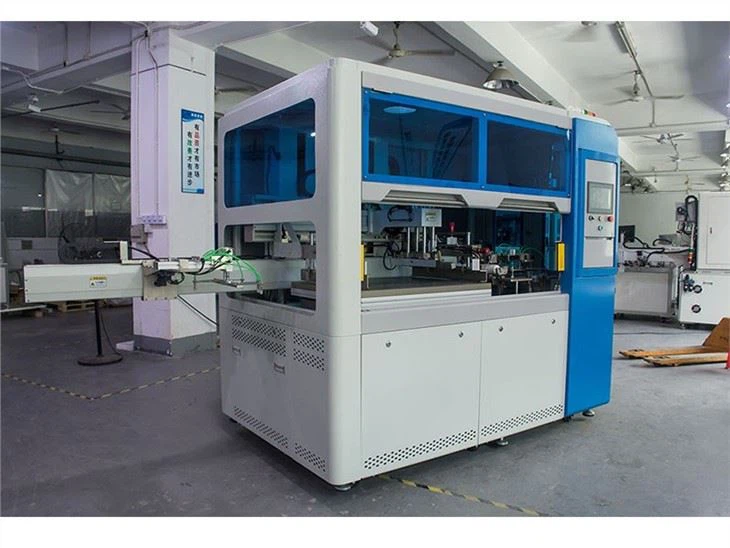

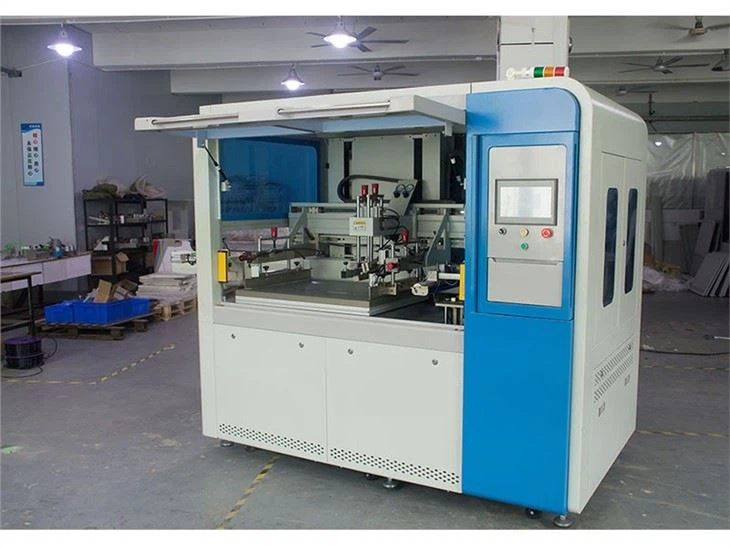

■ CCD visual automatic alignment high-precision screen printing machine, with left and right manipulators, fast operation, accurate alignment within ±0.02mm, superior performance and greatly improved production yield.
■ The machine has a strong structure and light weight. Imported servo and transmission motor plus precise guiding positioning make the operation stable, quiet and smoother and faster.
■ The design of the casting column of the machine printing base and the precision linear guide rail synchronization lock device ensures that the thickness of the printing ink layer is uniform.
■ Servo motor lifting screen and traditional printing with high-precision digital constant pressure printing head, so that the printing pressure can fully demonstrate the constant pressure effect.

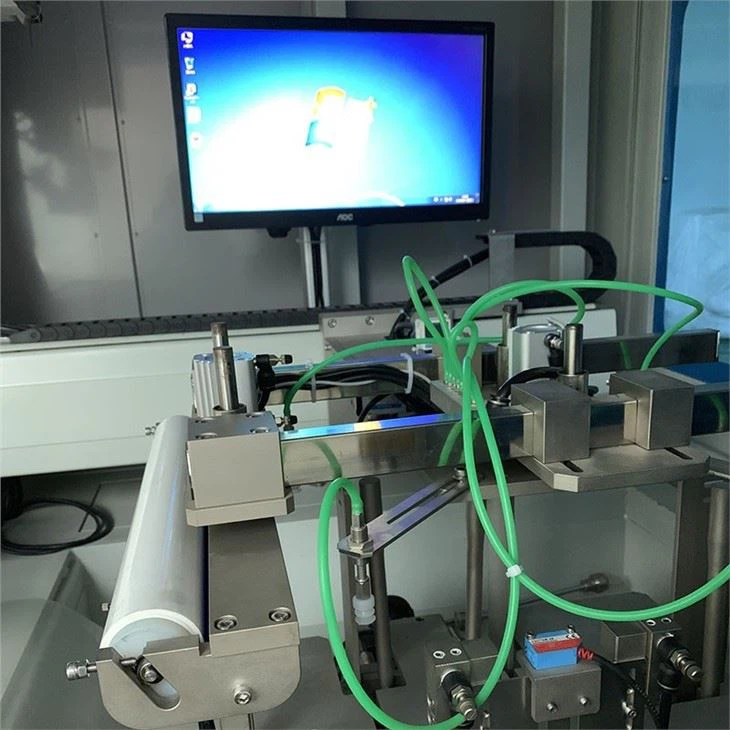

■The automatic feeding and discharging section specially designed for the automatic printing of single sheets of material, through the vacuum manipulator, to achieve the characteristics required by the automatic production line, and directly improve the production capacity and quality yield.
■ Equipped with safety design such as safety reset, automatic error detection system, safety grating, emergency stop button, warning lamp post, etc.
Recommended Collocation

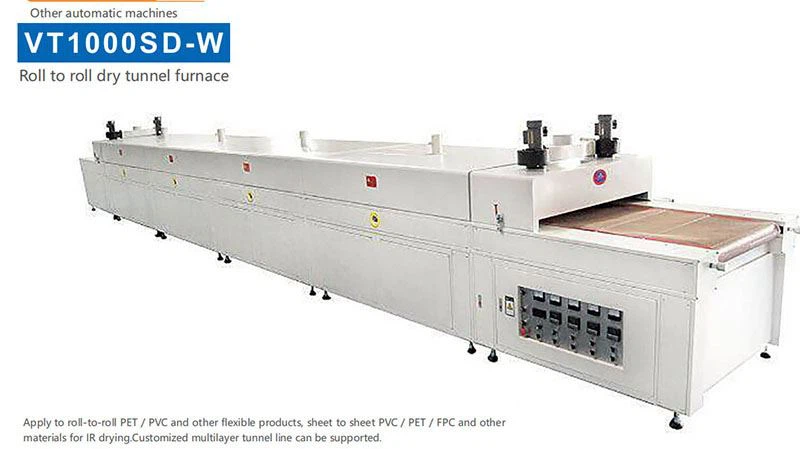

Dryer tunnel furnace
UV curing machine
