Applicable Substrates

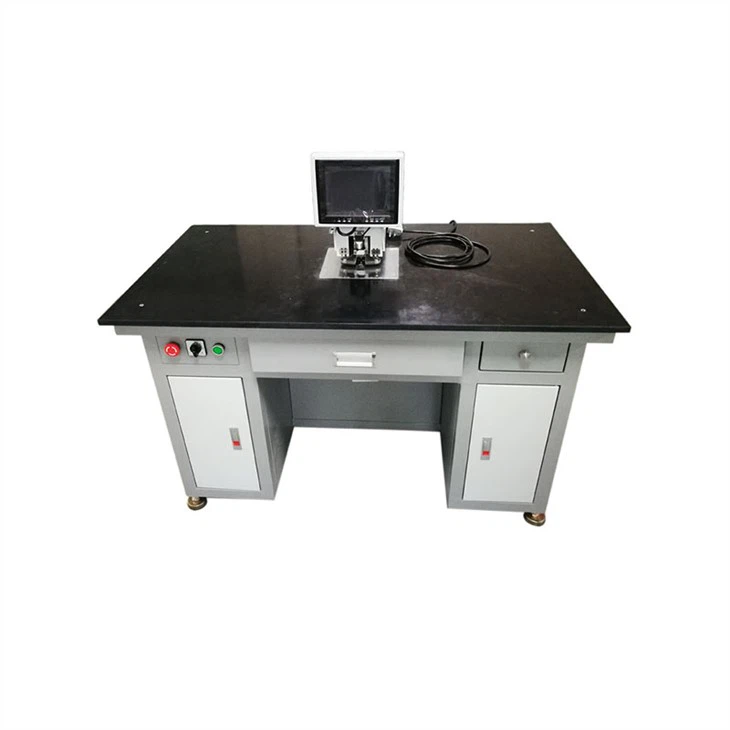

This automatic positioning hole punch machine is suitable for punching black/brown film, mobile phone panel, FPC IML / IMD, Flexible PCB film, PVC / PET / PC panel, membrane swithes, membrane panel, nameplates, film, conductive film, aluminum plate, stainless steel and other thin metal panels.
Machine Features
1. The automatic hole punching machine is positioned by CCD camera, and the positioning speed is faster and more precise!
2. High-precision positioning (deviation ≤ ± 0.015mm) ensures high quality of products and more precise requirements for electronic products.
3. The speed of positioning and punching is unmatched by manual machines, and the speed can be increased by 3-4 times, which greatly saves time.
4. The punching accuracy of the device is controlled below 0.015 mm, the scanning time of the CCD camera is 0.035 seconds, and the punching speed is 0.4 seconds/hole.
Punching Machine Specification
| Model | VTZ15 |
| Punching speed | 0.4s/hole |
| Punching force | 7KN |
| Material thickness | 0.01mm~3mm (depend on material) |
| Punching diameter | Φ1mm~Φ5mm(customizable) |
| Air pressure | 0.4~0.8MPa |
| Machine weight | 220kg |
| Dimension | L1250mm*W780mm*H1150mm |
