Applicable Scole
This screen printing line is suitable for those products which need anti-scratch and achieve automated production lines, material such as, acrylic sheet, PET film, polycarbonate, polyester film, membrane switches, flexible printed circuits, printed electronics, etc.
Successful Case Video

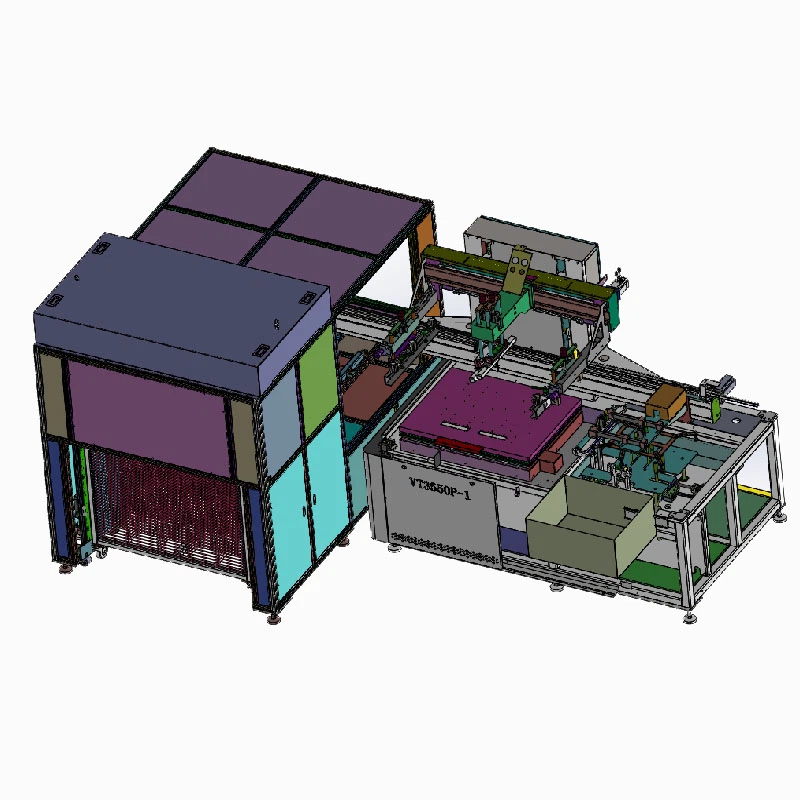

The Process of printing line
People manually load a stack of material onto the loader, the manipulator pick up a sheet onto the vacuum printing table, after printing, the unlaoding manipulator discharge the sheet on the dry rack. The dry rack unloader automatically down layer by layer according to the sheet number setting for each layer. After filled with printed sheets in all layers, people move out the dry rack and push it into the oven directy for drying.
Technical Parameters
| Machine dimension | L2700 x W2200 x H2100(mm) |
| Material size | 500*500mm |
| Cycle time | About 500PCS/H |
| Working voltage | 380V 50HZ |
| Air pressure | 5～6kg/cm2 PSI |
| Printing table area | 680*880mm(special can be customized) |
| Vacuum suction area | 500*600mm(special can be customized) |
