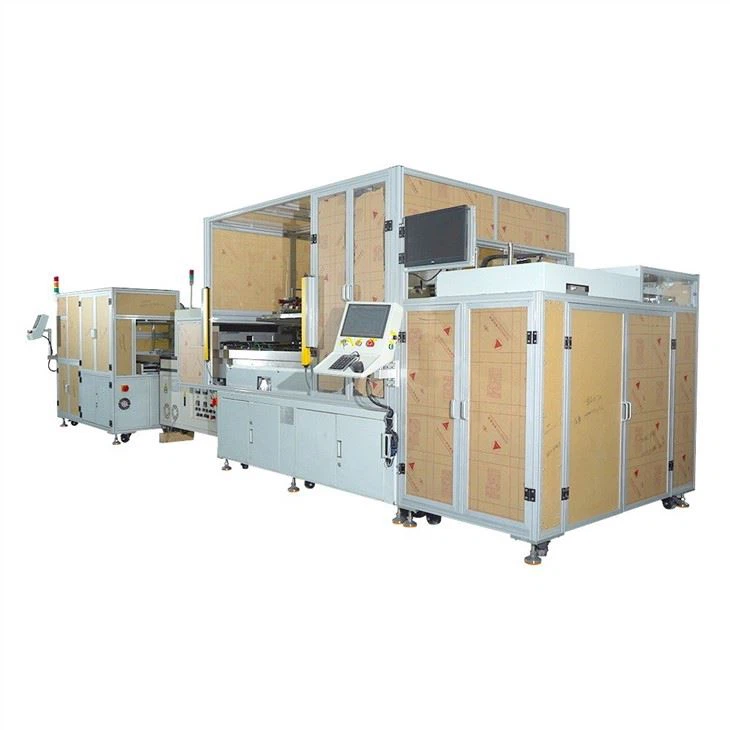

Applicable Range
The automatic upper CCD screen printing line is widely used for Membrane switches, Graphic overlays, Flexible printed circuits (FPC), Printed electronic films, RFID antennas, Touch panels and HMI components, PET, PC, PVC films, Polycarbonate films, Nameplates, Automotive panel and other opaque sheet material.
Equipment Video
Equipment Features
- Real-time CCD vision registration with automatic correction
- Servo-driven web handling for precise tension and positioning
- Continuous roll-to-roll operation for high-volume production
- High-speed printing with excellent registration accuracy
- Stable mechanical structure for consistent print quality
- User-friendly HMI with TFT LCD display
- Industrial components for long-term, reliable operation
Technical Parameters
| Model | VT5070PTR-1 |
| Max printing area | 500x550mm(special can be customized) |
| Printing table size | 870*900mm(special can be customized) |
| CCD alignment accuracy | 0.02mm |
|
Printing accuracy(non-material shrink & screen tension) |
0.05mm |
| Voltage | 380V |
| Power | 10KW |
|
Printing speed |
about 350PCS/H(ccd alignment), whole speed without ccd alignment is about 500pcs/H |
Process Description

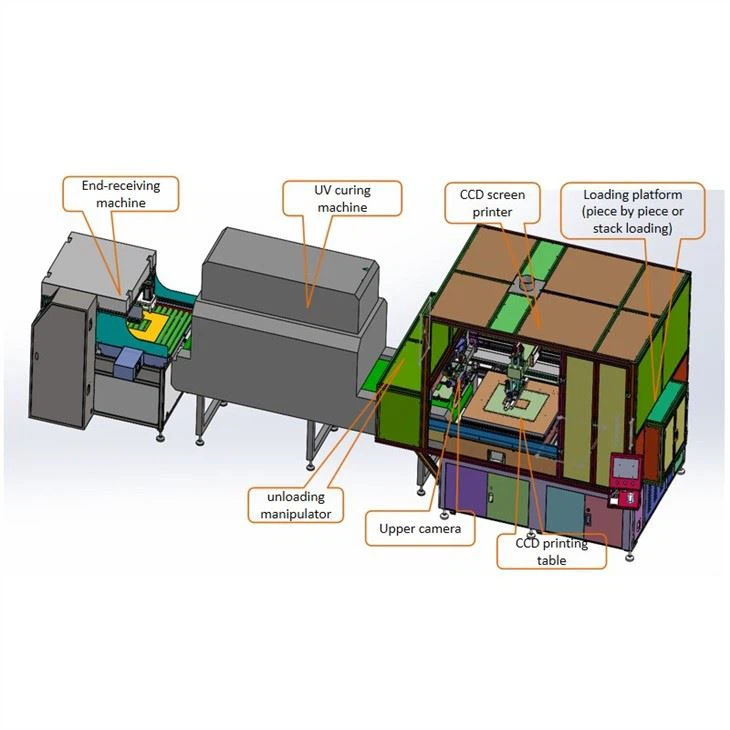

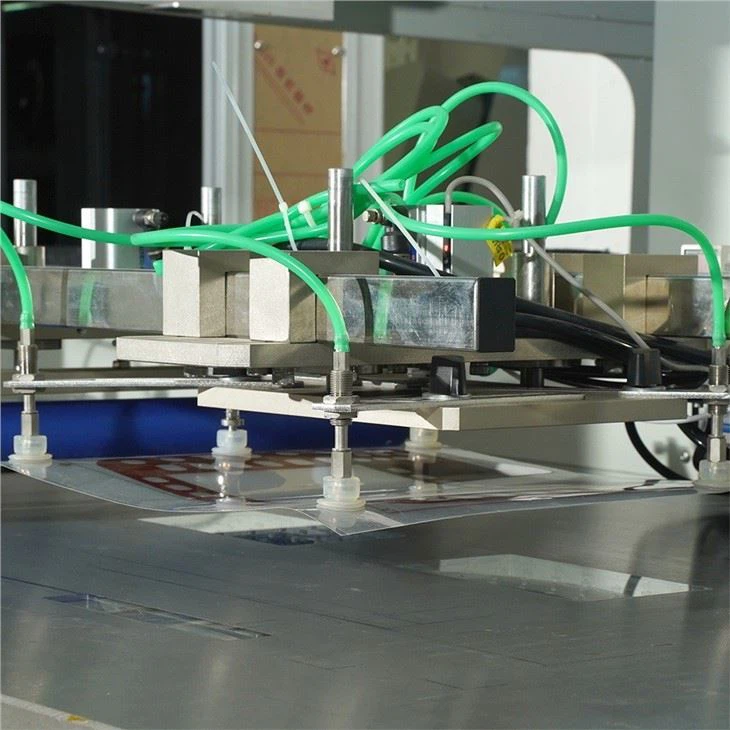

1：Worker manually put a stack of material/piece by piece onto loading platform, the loading manipulator feed material from loading platform to CCD printing table.
2：After the loading manipulator put the material on the ccd printing table, the loading manipulator process dust removal, then ccd camera positioning and rotate printing table to align.
3：After finished alignment, then process screen printing.
4：After screen printing, the reclaiming manipulator reclaim the printed material to the entrance of UV belt dryer.
5：After drying, the material will be flowed to the end-receiving machine through transfer roller, then manipulator reclaim material to end-receiving platform.
6：End-receiving platform will be declined to the height each time when material is placed, after declined to a certain height, manually take out of the material to cycle.
FAQ
Q1: Are you a trade company or factory?
A1: We're OEM & ODM with more than 5000 square meters in shenzhen China.
Q2: How long to produce the machines?
A2: Typically our production leadtime is 25-30 working days, for peak season and leadtime is 35-40 working days.
Q3: Do you have CE certification?
A3: Yes, all of our machines have CE certification for custom clearance.
Q4: How can I get training after received your machine?
A4: We provide operation manuals and online video operation training.
