Video Description:

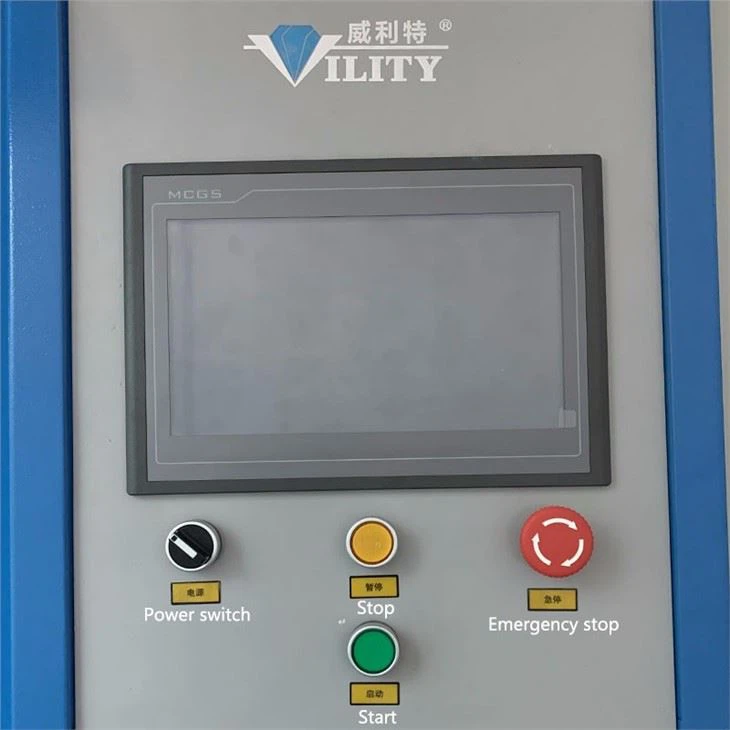

Features:

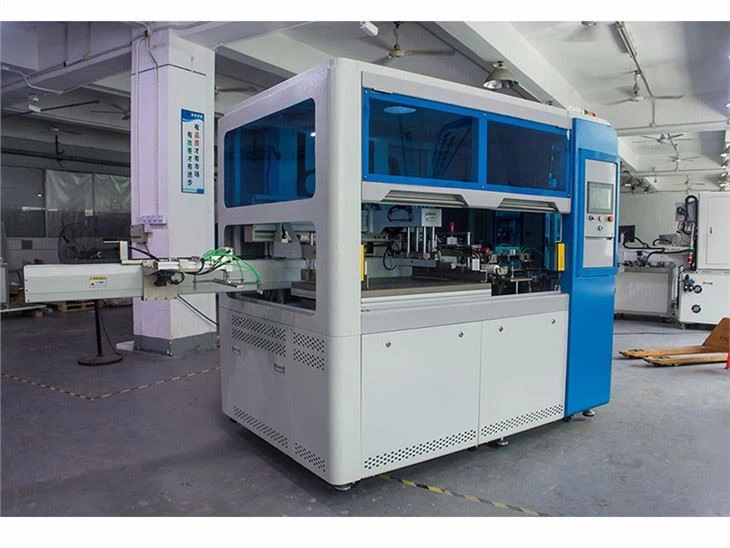

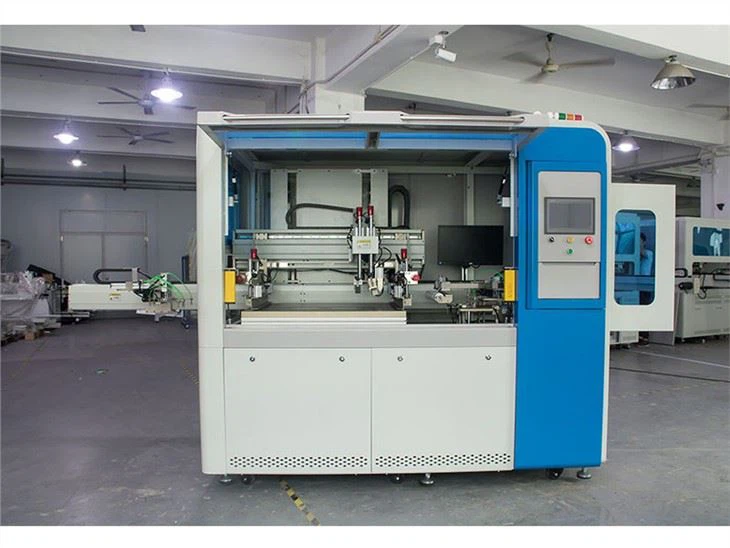

1,Divided into loading section, unloading section, printing section along with a shuttle table that moves from right to left(optional for printing table to move from left to right).
2,designed for manual loading /unloading of substrate; once the camera captures the target image the stage auto offsets and subsequently transports to printing section for printing.
3,screen frame up/down movement :driven by servo motor and hall screw with clearance tolerance controlled with 50um.
4.printed head: driven by servo motor with linear guide + timing belt for printing stability.
5.Integrated with automated CCD registration system.

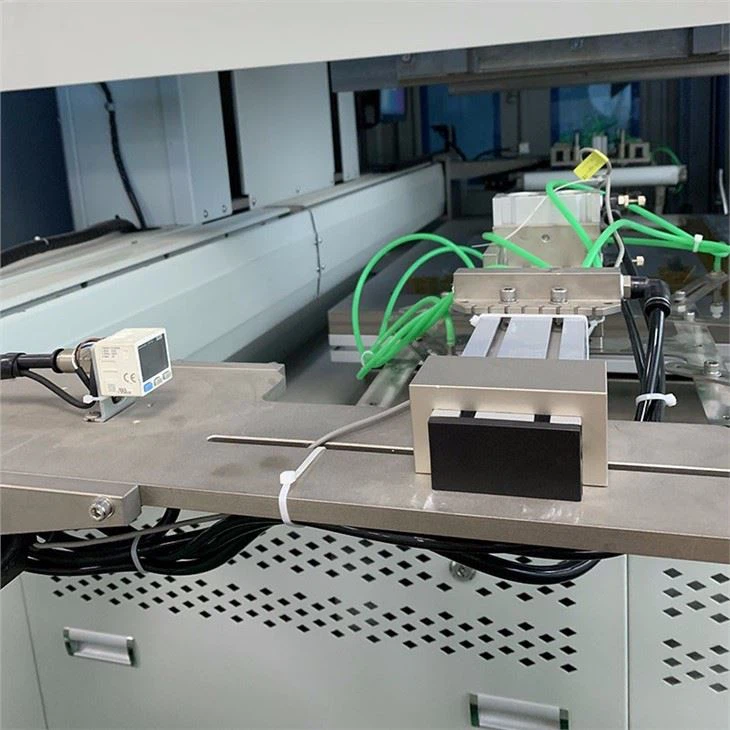

6.Film handing with vacuum shuttle carrier.
7.CCD camera registration and auto alignment.
8. Inspection station is available.
9.total system accuracy:0.05
Machine Parameters:
VT4050P-1 | |
Printing table size | 680*880 mm (special dimensions customizable) |
Printing size: | 400x500mm (special dimensions customizable) |
Frame size: | 800x1000mm (special dimensions customizable) |
Maximum screen frame thickness: | 25 - 55 mm (special dimensions customizable) |
Maximum printing speed (full speed): | About 500 P/H |
Power specifications: | 3 phases, 380V, 50Hz 5KW |
Air supply pressure: | 4 - 6 kg/PSI |
Air consumption: | 2.6L/cycle |
CCD positioning accuracy: | ±0.02 mm |
Printing accuracy (non-material shrinkage, and screen expansion): | ±0.05 mm |
CCD center distance: Adjustable range | Horizontally 200mm-500mm(specialdimensions ustomizable) |
Machine dimension: | 3300*1460*2100 mm |
Machine weight: | About 1500 KG |
VT6090P-1 | |
Printing table size | 780*1100 mm (special dimensions customizable) |
Printing size: | 600x900mm (special dimensions customizable) |
Frame size: | 900x1100mm (special dimensions customizable) |
Maximum screen frame thickness: | 25 - 55 mm (special dimensions customizable) |
Maximum printing speed (full speed): | About 500 P/H |
Power specifications: | 3 phases, 380V, 50Hz 5KW |
Air supply pressure: | 4 - 6 kg/PSI |
Air consumption: | 2.6L/cycle |
CCD positioning accuracy: | ±0.02 mm |
Printing accuracy (non-material shrinkage, and screen expansion): | ±0.05 mm |
CCD center distance: Adjustable range | Horizontally 200mm-500mm(specialdimensions ustomizable) |
Machine dimension: | 3630*1600*2100 mm |
Machine weight: | About 1500 KG |

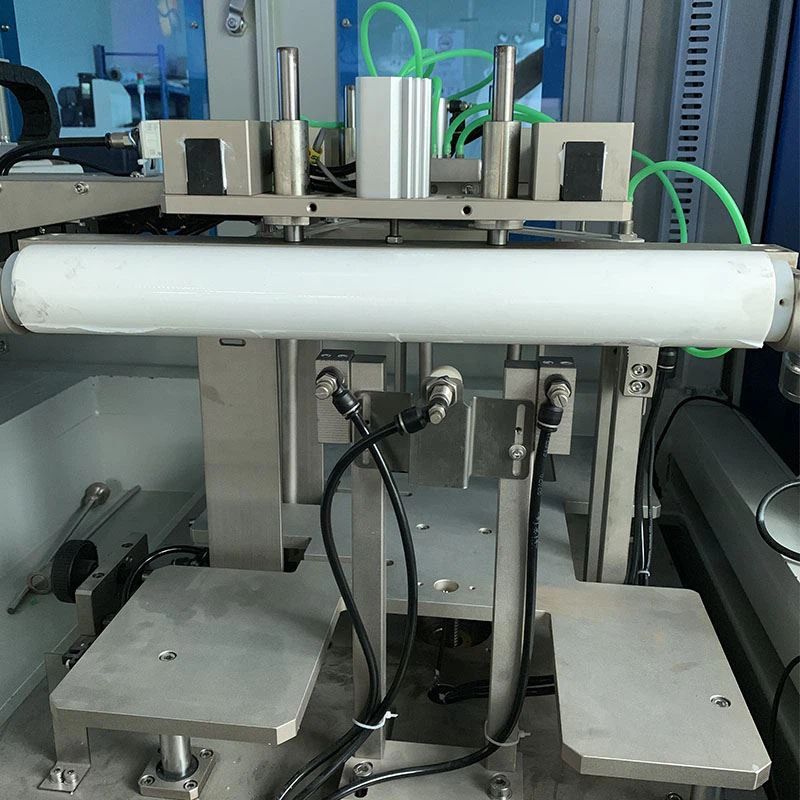

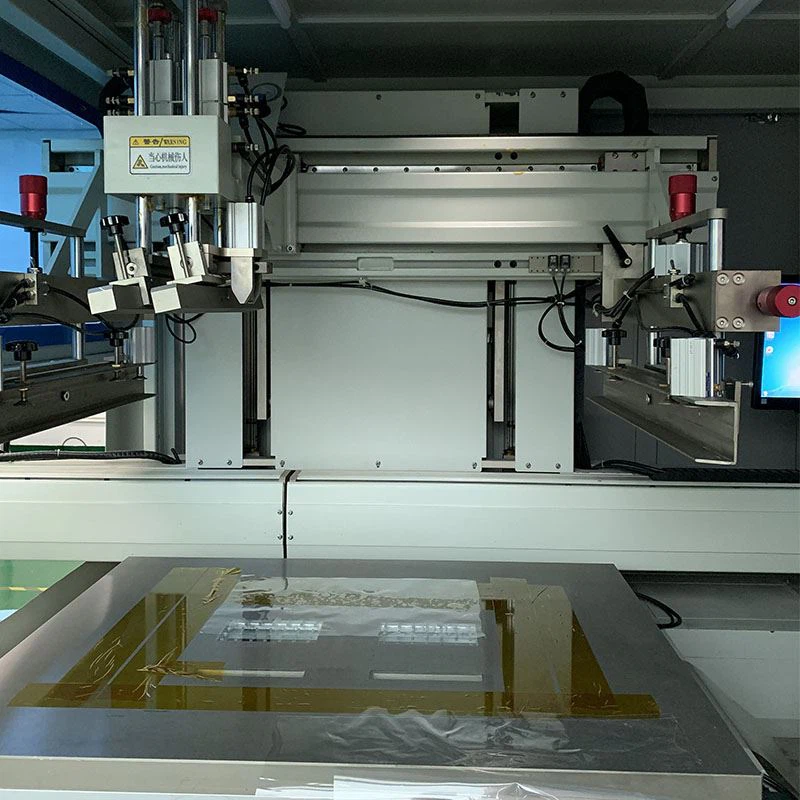

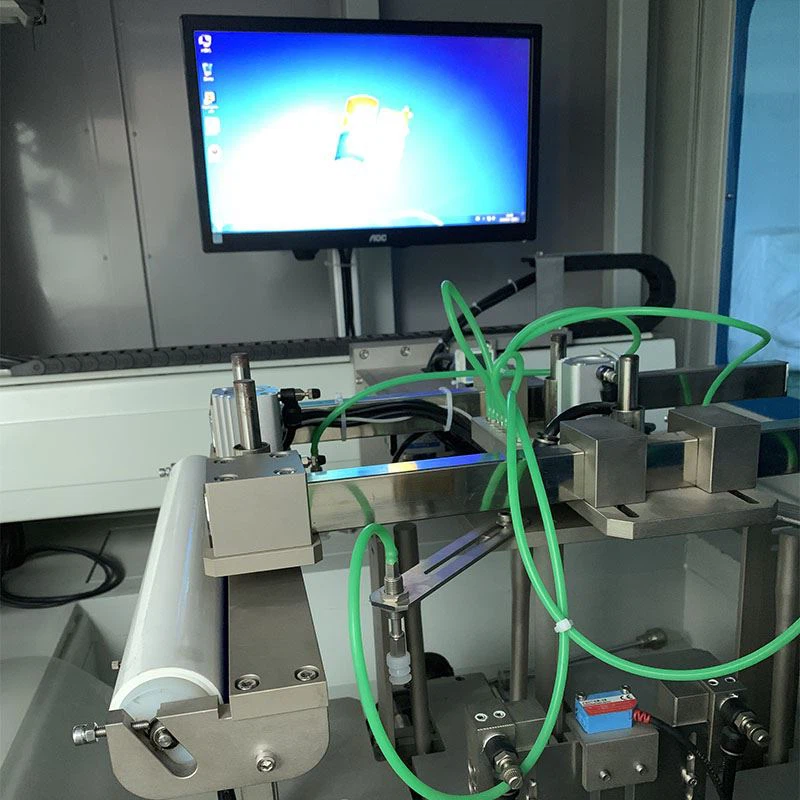

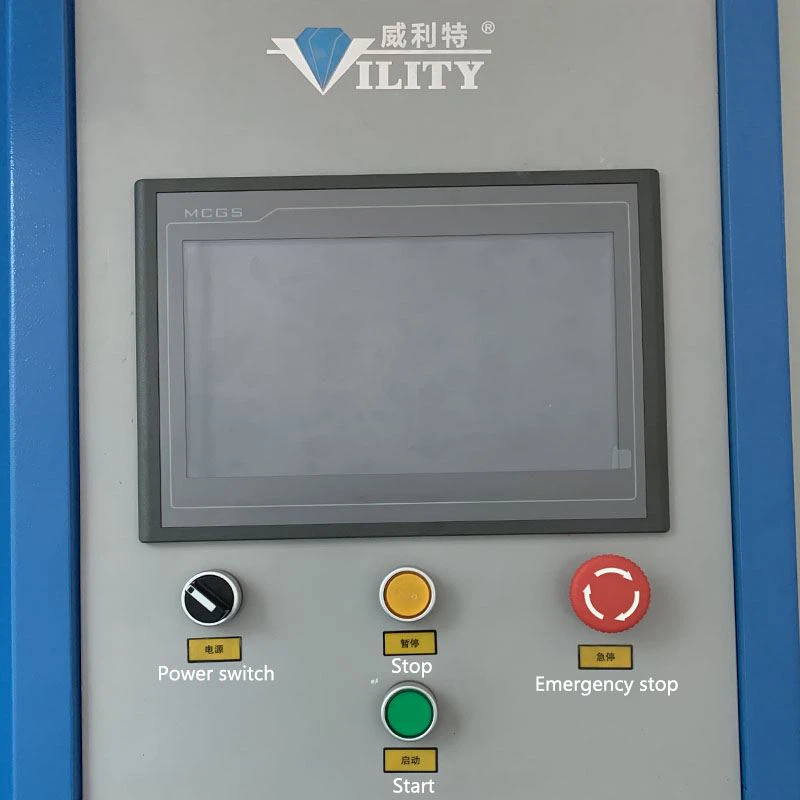

Image Details:
Samples:

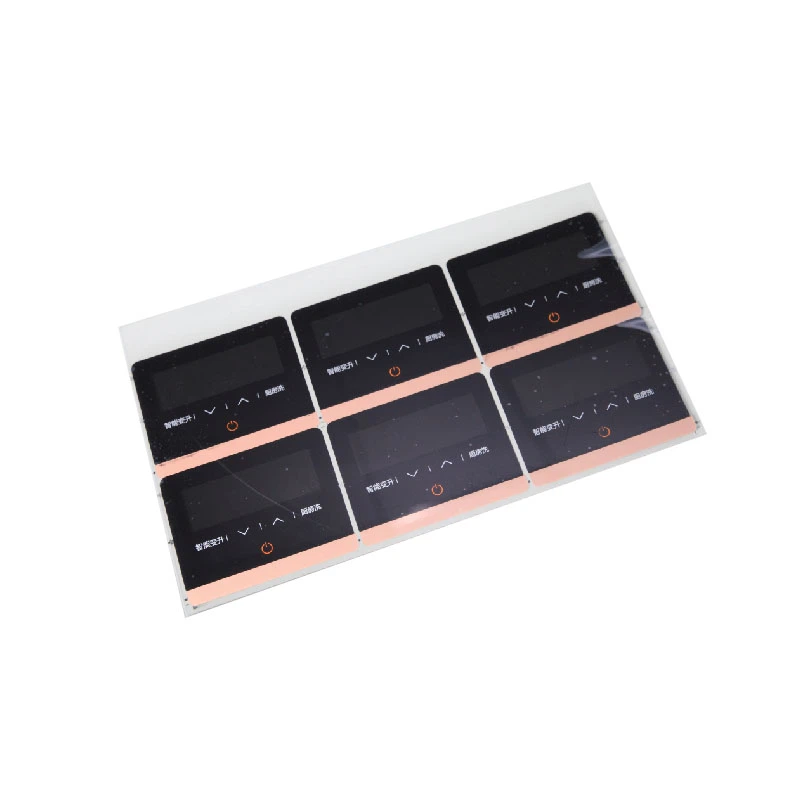

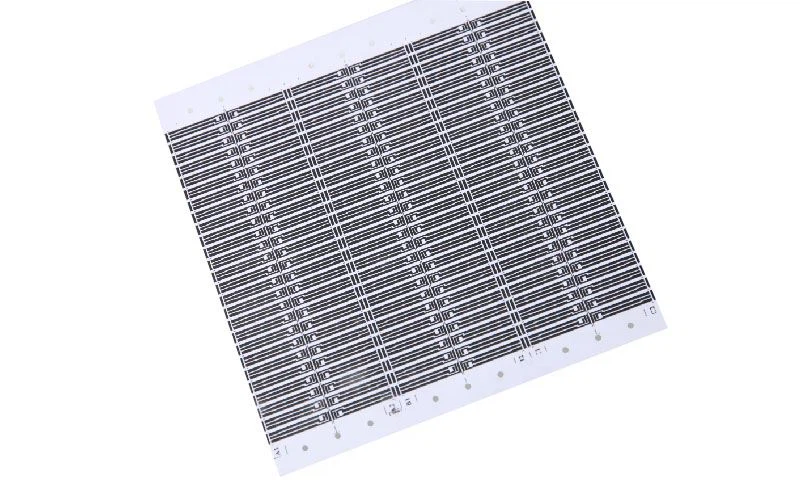

Membrane switch, glass cover, acrylic board, conductive film, composite board back cover and so on.
