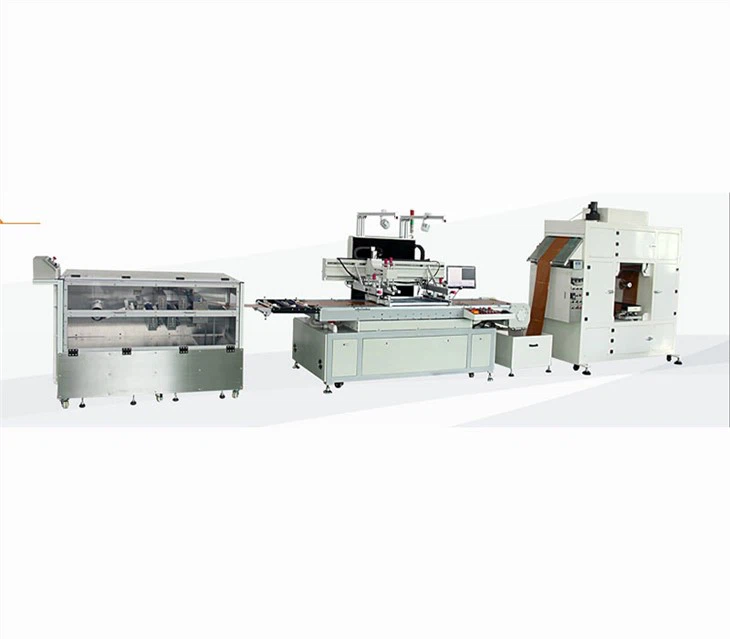

Roll To Roll CCD Visual Registration Screen Printing Machine

1.Unwinder unit includes antistatic and dust cleaning function.

2.Printing unit is equipped with CCD registering system, camera captures the marks for positioning.

3.Pneumatic screen clamp, easy to install and replace screen.

4.Sensor box to sense material and material will automatically released for printing.

5.Can be equipped with UV dryer machine or hot air dryer oven.

Send Inquiry

Chat Now

Download

Description

Industry Application:

This screen printing equipment is suitable for electronic industry, label industry, automotive industry, circuits industry, such as membrane switch, heat transfer label, automotive dashboard, FPC, nameplate, mobile phone panel, etc.

Product Features:

* CCD visual registration, high precision.

* Vacuum printing table for fixing material.

* Scraper and Squeegee Left-Right moving, fast printing.

* CCD positioning accuracy within 0.02mm.

* Imported servo motor and linear guide rail, lightly runs and without jitter.

* HMI operateion, easy for function setting.

* With emergency stop, safety for operator.

* Electrostatic eliminator (optional)

* Dust-removal roller (optional)

Product Specification:

Printing area	500*700mm
Power	5KW
Working pressure	5-8kg/cm2
Voltage	380V 50Hz
Material thickness	0.075-0.125mm
Printing speed	about 1500M/H
CCD alignment accuracy	±0.02 mm
Printing accuracy	±0.05 mm
