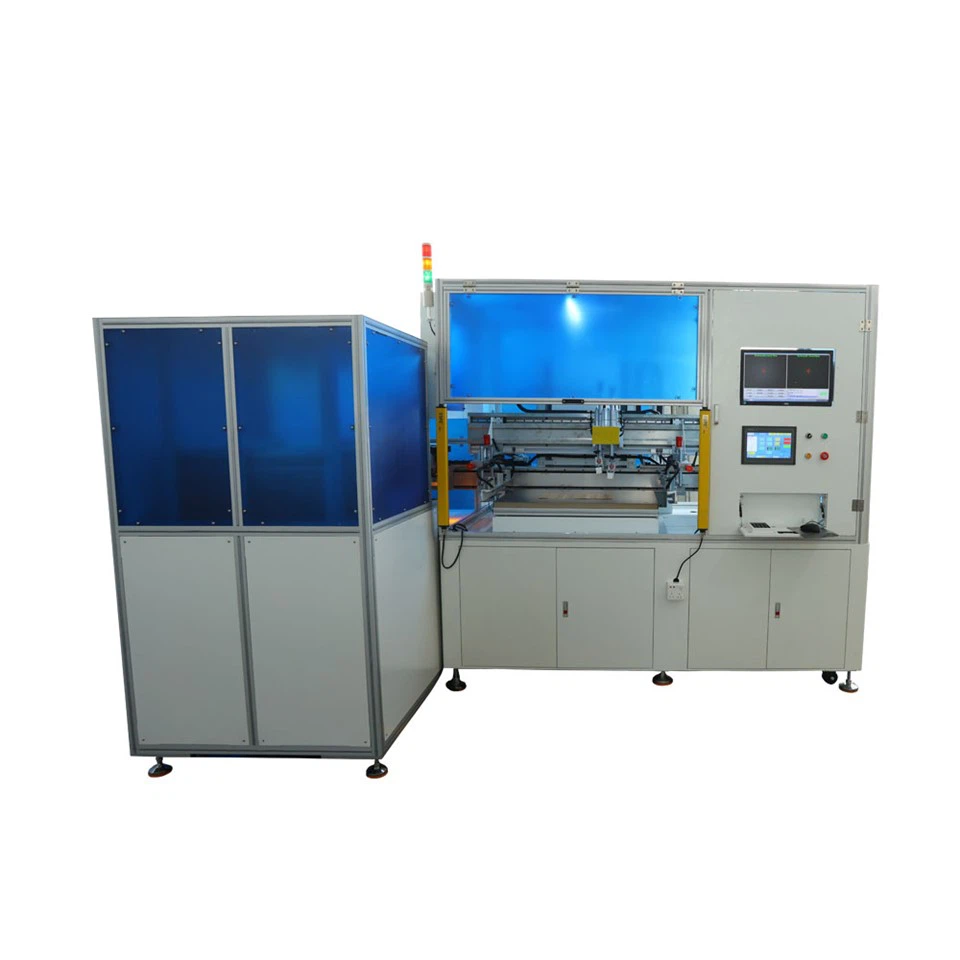

Applicable Range
This screen printing line is widely used for membrane switches, graphic overlays, membrane keypads, kinds of panels, medical labels, membrane circuits, glucose strips, diffusion films, appliance panels, automotive dials, decals, PET, IMD/IML, polycarponates, etc.
Equipment Features
1. Upper CCD visual alignment printing, high precise alignment;
2. Wholeline adopts automatically loading and unloading, high degree of automation,saving labor;
3. Equipment adopts stable control system, equipment runs stably, it's safe and reliable;
4. The power drive adopts high-precision accessories such as servo screw to ensure the accuracy and stability of operation;
5. The operation is simple, the settings of the touch screen are concise and clear, and it is easy to operate.
Machine Video
Tachnical Parameters
|
Item |
Parameters |
|
Total machine size |
L6772xW2266x H2125(mm) |
|
Machine fix method |
floor-standing |
|
Machine weight |
3500kg |
|
Total power |
40kW |
|
Voltage |
380V 50HZ |
|
Environment temperature |
room temperature |
|
Material szie |
610 x 915mm |
|
Material thickness range |
0.125 – 1mm |
|
Max printing speed |
about 350PCS/H(ccd alignment), whole speed without ccd alignment is about 500pcs/H |
|
Air consumption |
2.6L/cycle |
|
Air pressure |
5~6kg/cm2 PSI |
|
Printing table size |
900*1300mm(customizable) |
|
Max printing area |
600*900mm(customizable) |
|
Max screen frame size |
1000*1500mm(customizable) |
|
Max screen frame thickness |
25~55mm(customizable) |
|
CCD alignment accuracy |
±0.02mm |
|
Printing accuracy |
±0.05mm |
|
The center distance of two CCD |
adjustable range:horizontal 200mm-700mm(special can customized) |
