Applicable Scope
This production line is a fully automatic equipment designed based on the field of composite board and acrylic board printing to improve production efficiency and product quality.
Product Features
It can realize the unmanned production of the whole line, automatic film-tearing, automatic CCD alignment screen printing, automatic multilayer rack unloading.
It is a feasible solution that for those acrylic sheets, composite boards and other sheets products need anti-scratch requirements, the whole process is without material stacking to achieve anti-scratch purpose.
Fully automatic screen printing line its productivity is 2-3 times than semi-automatic machine, highly improves production capacity and save labors, 1 people can supervise 2-3 lines.
Case Video
Process Flow Chart

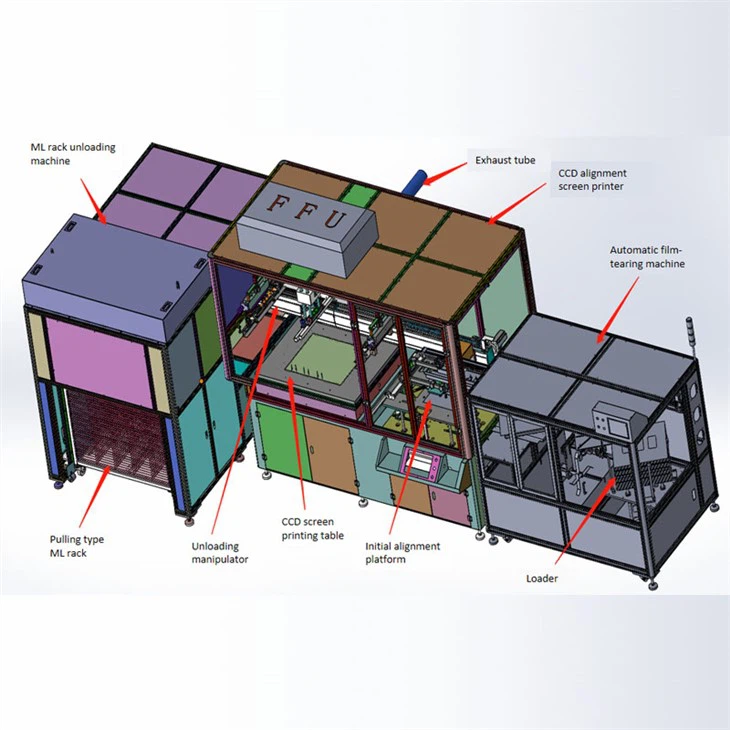

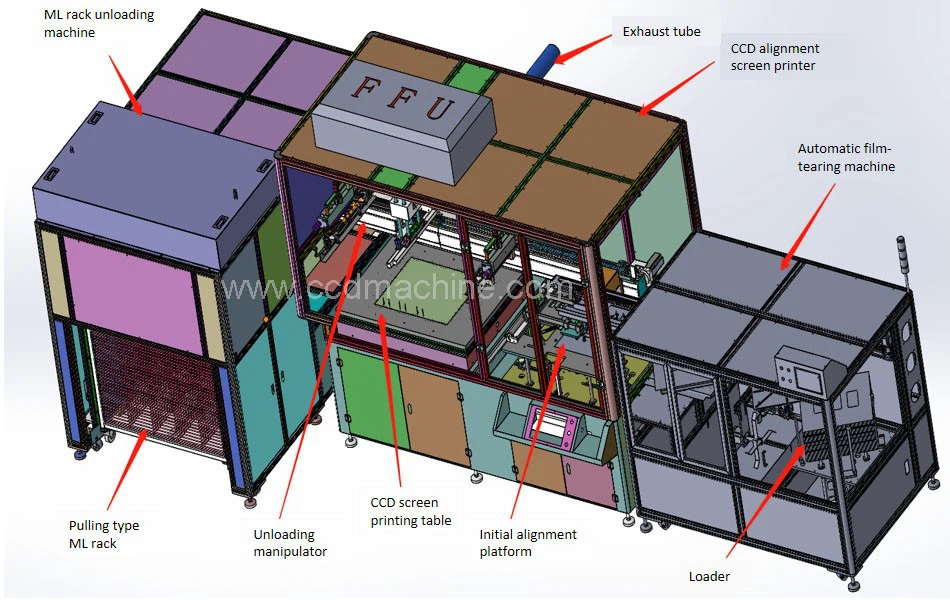

Manually load a stack of material → Automatic film-tearing → Manipulator of printer loading → Initial alignment & dust removal → CCD alignment screen printing → Manipulator unloading → Multilayer rack storage
Technical Parameters
| Overall dimension | L6300x W2450x H2600(mm) |
| Overall weight | 2500kg |
| Total power | 15KW |
| Workign voltage | （380V、220V）50HZ |
| Substrate size | 450*450-200*200mm |
| Productivity | 350-400PCS/H |
| Air pressure | 0.6~0.8MPa |
| CCD alignment precision | ±0.02mm |
| Right-angle printing accuracy(no material shrink & screen extension) | ±0.1mm |
| Abnormal handle method when no material | Machine stop & alarm after finished last artwork |
PS: Customized solution is supported!
