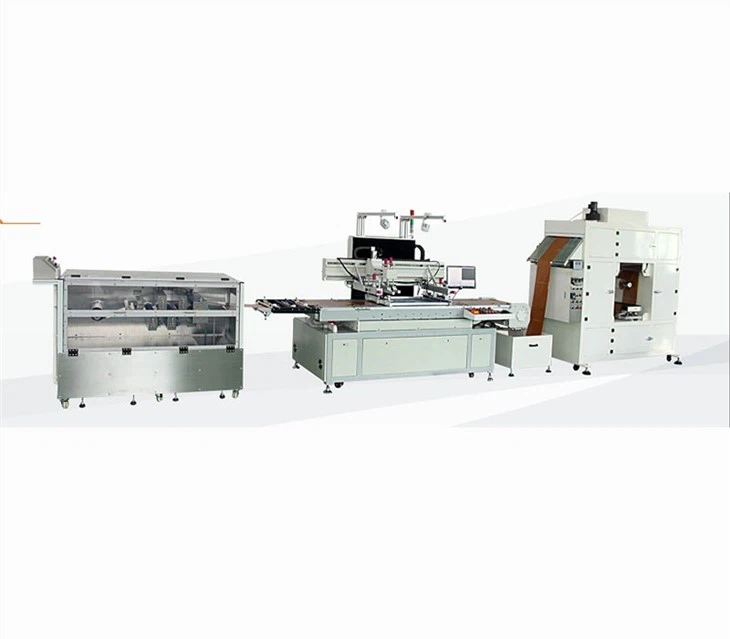

Machine process :
Raw material →Automatic feeding machine (anti-dusting, removing film, electrostatic eliminating)→Automatic printing ( automatic punching, printing, QC, automatic feeding )→Automatic oven (be self-polishing , protective film, attach tape, release paper ) →Automatic receiving →Automatic punching machine( cut)→End product.
Machine Specification:
| Model No. | VTSY5070R |
Working place area(mm) | 1000x660mm |
Max inputting width | 450mm |
Max printing area | 600x450mm |
Min printing area | 400x500mm |
printing thickness | 0.075-0.125mm |
| CCD alignment precision | ±0.02mm |
| Printing precision | ±0.05mm |
| Air pressure | 4 - 6 kg/PSI |
| Air consumption | 2.6L/cycle |
Voltage | 380V-50HZ |
| Power | 40KW |
| Max size of screen frame | 1100x800mm |
Min size of screen frame | 300x200mm |
Mix print skip distance(mm) | 2 |
Machine size | L3300mmxW1600mmxH2200mm |
Working pressure | 5-8kg/cm2 |
| One time printing speed(printing number/hour) | 1000-1200 |
| Second time printing speed(printing number/hour) | 800-1000 |
| CCD center space | 330mm |
Scraper stroke | 900mm |
| Weight | 2000kg |
Why choose us:
1.10 years professional production experience in printing punching machinery industry.
2.5000 m^2 production workshop, strong production capacity.
3.Professional senior engineer develop the best solution.
4.Strict quality control system, CE certificate available.
5.Main components adopt imported international famous brand.
6.Timely delivery, half of an hour to shenzhen port.
7.Professional after-sale service, Email will be reply in 24 hours.
8.Site installation or video support and commissioning in your factory
9.We got many machine development patents, software system can be upgrated by free in lifelong.
10.All of our machines can have one year guarantee and lifelong maintenance.
11.Giving a free technical training for your employees.
Recommended collocation:

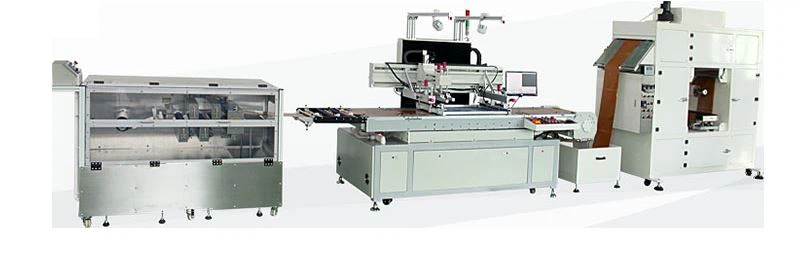

Drying oven

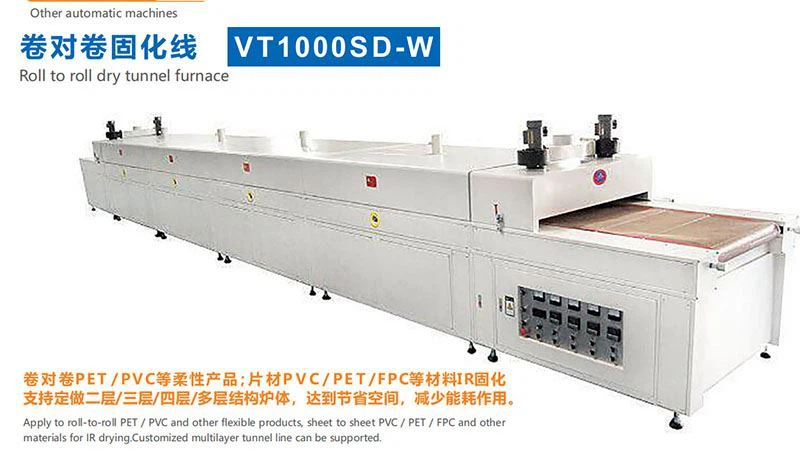

Tunnel furnace
FAQ :
Q: Your screen printing machine is suitable for which industries ?
A: Our machine mainly apply for photoelectric industry, circuit industry and electronic industry ect .
Q: How do you pack the machines?
A: All the machines were packed by film inside and then packed by polywood.
Q: What are your payment terms?
A : 100% T/T, 50% deposit, balance need paid off before shipping.
Q; What certifications do you have?
A: All machines we got CE certification.
Q: How can you help us install the machines?
A: Our engineer can go overseas to help install and debug the machines.
