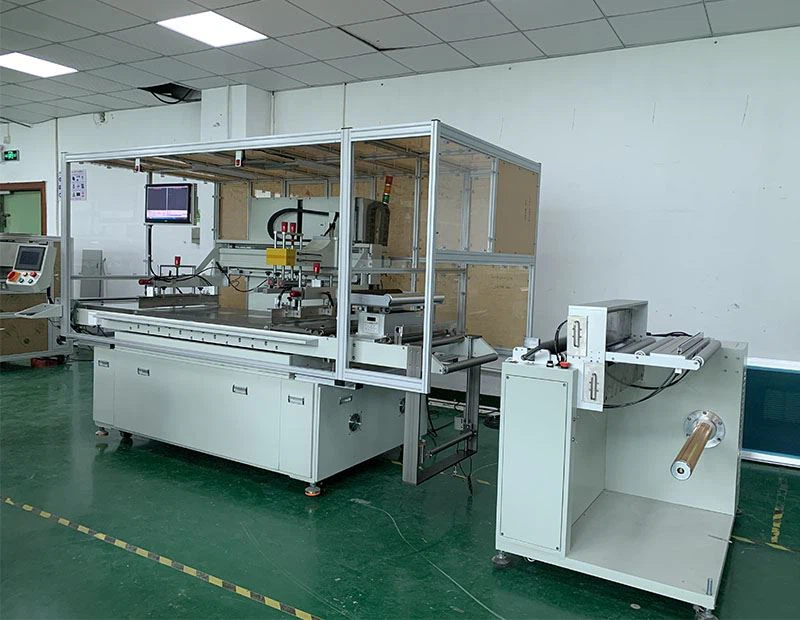

Automatic CCD Positioning Screen Printing Machine For Roll To Roll Film

Suitable for Roll material for screen printing, For example: PET,PC,FPC,Transfer paper,Membrane switch,trademark,Electrostatic net,Electric film,Flexible circuit board,Aluminum foil,Copper foil,and many more

Send Inquiry

Chat Now

Description

Application scope:

Suitable for: Roll material for screen printing, For example: PET,PC,FPC,Transfer paper,Membrane switch,trademark,Electrostatic net,Electric film,Flexible circuit board,Aluminum foil,Copper foil,and many more

Machine Features:

1,Automated equipment for roll-to-roll printing;

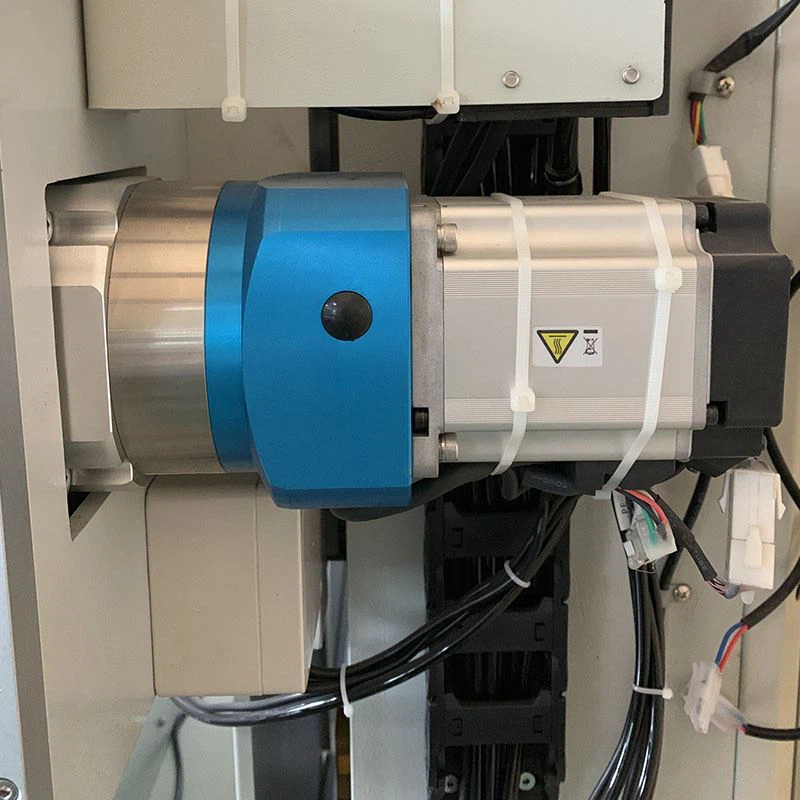

2,Industrial computer control,Servo motor transportation,HD CCD image positioning;

3,Automatic printing production.Meet the needs of high volume orders;

4,Dramatically reduce costs, Increase productivity;

5,CCD high-precision alignment,Guaranteed high-precision printing;

6,Equipment can make production schedule,Automatic alarm after production completion;

7,Automatic machine shutdown alarm after printing material is completed;

8,CCD adopts XYθ rotation alignment adjustment,No need to adjust the network;

9,Labor saving,One person can supervise multiple devices,Easy to operate,Easy to learn;

10,Use automatic dust and static elimination function,Cleaner materials;

Machine parameters:

Model	VTSY5070R
Working place area(mm)	1000x660mm
Max inputting width	450mm
Max printing area	600x450mm
Min printing area	400x500mm
printing thickness	0.075-0.5mm
CCD alignment precision	±0.02mm
Printing precision	±0.05mm
Air pressure	4 - 6 kg/PSI
Air consumption	2.6L/cycle
Voltage	380V-50HZ
Power	40KW
Max size of screen frame	1100x800mm
Min size of screen frame	300x200mm
Mix print skip distance(mm)	2
One time printing speed(printing number/hour)	1000-1200
Machine size	L3300mmxW1600mmxH2200mm
Machine weight	2000kg
