Application:

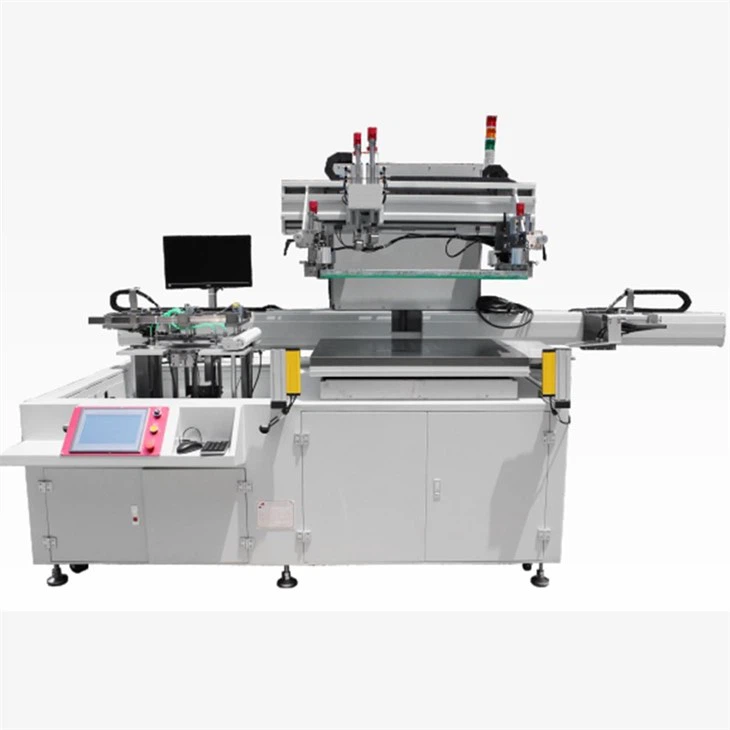

This CCD registering screen press machine is widely used for printing high precision product printed, such as a various of panels, membrane switch, acrylic touch screen, laptop screen, mobile phone screen, automotive flatbed electronics, etc.
Product Features:
1. It is equipped with film-tearing unit, automatically tear film from product and then automatically loading
2. Before ccd camera alignment it will start initial positioning and improve the position of placing product on the printing table.
3. Printing table adopts aluminum substrate with micro holes, after releasing material through suck nozzles, material will be fixed on the printing table by vacuum, then CCD camera reads the marks and process second high precise alignment.
4. Printing table will be automatically rotate to adjust the error after ccd camera capture the marks to ensure the printing accuracy within 0.05mm.
5. Ball screw rod and linear guide rail were HIWIN brand imported from Taiwan, stable and runs lightly and without jitter.
6. Both sides of the printing table, it is equipped with safty grating, once people get close to the dangerous area, it alarms and machine will be stopped to ensure people safety.
7.Controller adpots human-manchine interface, touch screen operation, a serious of parameters setting, easy to operate.
Product Specification:
| Model | VT6090P-1 |
| Printing size | 500x700mm |
| Printing table | 680*880mm |
| CCD alignment accuracy | 0.02mm |
| Printing accuracy | 0.05mm |
| Voltage | 380V |
| Power | 5KW |
| CCD center distance | 330mm |
Company Advantages:
Vility screen printing equipments now is more and more popular in domestic and international electric screen print this industry, cause she has a professional R&D team who has been providing many successful umanned production line of screen printing solutions for customers.
Moreover, Vility screen printer machines are very stable, all main configulations are imported to ensure its durability. High precision and good quality at reasonable price, it is cost-effective.
In addition, we provide free proofing for customer, before placing order, customer can send their material to us to make sample to check the effects, ensure that everything is satisfied then confirm the order is not late.
Customized requirements, such as film-tearing, antistatic, dust-removal, upper CCD, detection and quality inspection other extra functions are supported, according to production needed.
After-Sales Service:
1. Providing english version operation manuals and guided operation video.
2. 1 year warranty, during this period, the maintenance is free.
3. Providing free technical training and on-site video support.
4. If necessary, we will send our engineers to oversear for support.
5. If meet any problems, contact us or leave us your problems, we'll solve for you at first time.
