Apply for:
1. Electrical control membrane switch, nameplate, IMD, IML, FPC, conductive film and other flexible circuit boards
2. Solar circuit board and
3. Labels, buttons, antennas, touch screens, protective membranes, battery accessories, computer and peripheral terminal equipment
4. Traffic maritime warning signs, containers, car compartment stickers, car, motorcycle decorative stickers, etc.
5. Electronic switch, instrument panel label
6. Ironing transfer in clothing textile
7. Sports equipment, toys, etc.
8. Four-color advertising printing
Main Features:

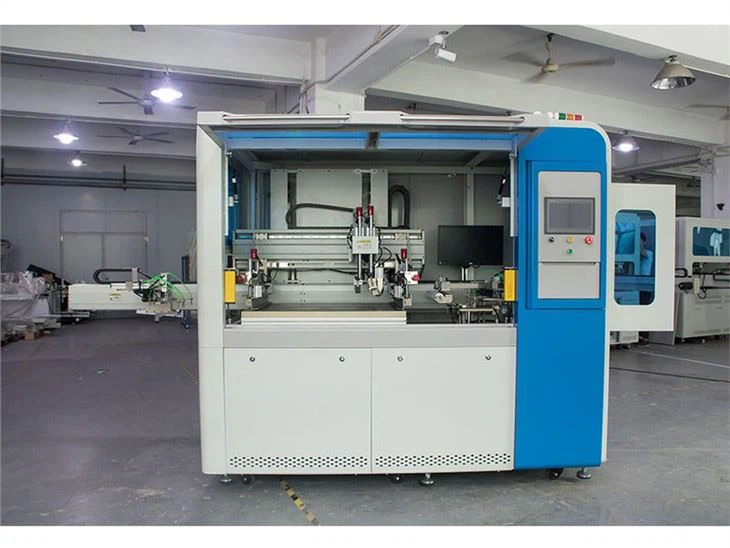

■ Fully automatic screen printing machine, accurate alignment is ±0.02mm, superior performance, UV curing, greatly improved production yield
■The structure of the machine is strong and light, and the imported servo and transmission motor and precision guide rail are positioned to operate stably, quietly and smoothly.
■The main body of the printing is cast and molded, and the flatness of the table is ±0.1mm.
■Machine printing seat casting column and precision linear guide synchronous locking device design, uniform printing ink layer.
■High speed 500pcs/H and high accuracy.
Machine Parameters:
VT6090P-1 | |
Printing table size | 780*1100 mm (special dimensions customizable) |
Printing size: | 600x900mm (special dimensions customizable) |
Frame size: | 900x1100mm (special dimensions customizable) |
Maximum screen frame thickness: | 25 - 55 mm (special dimensions customizable) |
| Power specifications: | 3 phases, 380V, 50Hz 5KW |
Air supply pressure: | 4 - 6 kg/PSI |
Air consumption: | 2.6L/cycle |
CCD positioning accuracy: | ±0.02 mm |
Printing accuracy (non-material shrinkage, and screen expansion): | ±0.05 mm |
CCD center distance: Adjustable range | Horizontally 200mm-500mm(specialdimensions ustomizable) |
Machine dimension: | 3630*1600*2100 mm |
Machine weight: | About 1500 KG |
Image Details:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
