Applicable Scope

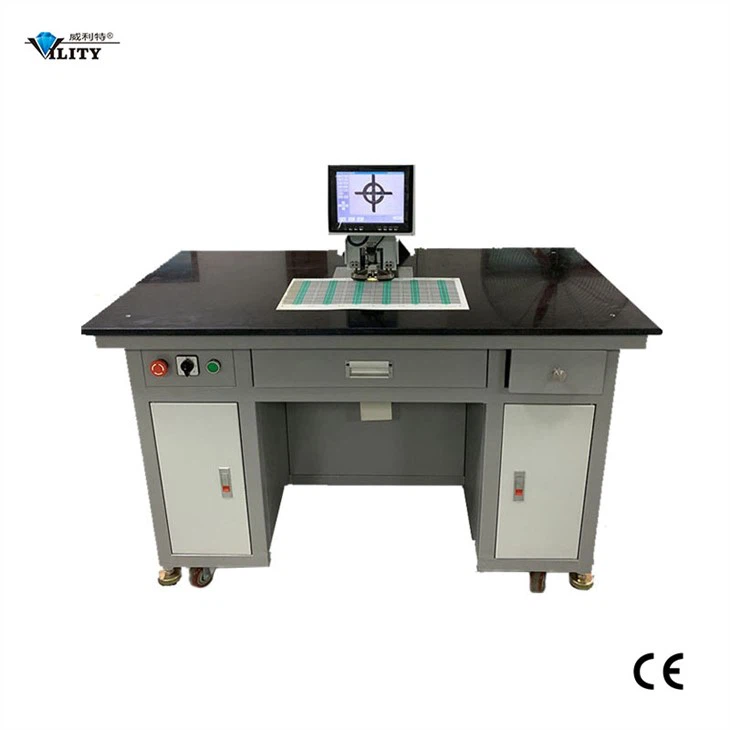

This semi-auto ccd guide hole punching machine is popular in screen printing industry, processing registration punch after printing. It is perfect for aluminum nameplates, thin metal, thin stainless steel, automotive badges and other plate.
Puncher Features
1. Large and wide operational stage enables the object to be moved and rotated easily;
2. High speed: Super high punching speed enables the process of hole-recognizing and target-punching to be within one second;
3. Precise-Transmission and Micro-Step Motor Driver is used to enhance accuracy and stability of process;
4. Upper light and bottom light enable every materials of targeting holes to be identified easily and to enhance the accuracy of recognition in targeting shape;
5. Sampling template can be saved, and then can be used directly next time.
6.User can choose different tooling size to punch different diameter and thickness material.
Punches Parameters
| Model | VTZ15 |
| Process Accuracy | ± 0.02mm |
| Process Speed | 0.4s/hole |
| Punch Size | Standard size Ø 1.0~5.0 mm |
| Punch force | 7KN |
| X-Y Axis Travel | Available view on operational screen |
| Illumination | Transparent LED & Reflecting LED |
| Punch Thickness | 0.1-4mm |
Puncher Advantages
1. This hole punch machine absorbs the advantages of foreign flexible printed circuit drilling machine, combines with the characteristics of Chinese circuit board production with fine design.
2. Adopt granite panel, anti-wear, practical, with beautiful appearance, rational structure, convenient operation, high drilling precision, etc.
3. Adopt reflected light and transmission light optional function and second reread, which greatly improves the drilling precision; LCD display, which is favourable for long-term operation.
4. This punching machine applies the technology processing of SCM, which can automatically identify object with more stable performance.
5. No Foot Paddle is needed. All the operation be finished by touch-screen. It is sensitive enough to enhance the speed of operation.
6. Computer systems can supports software upgrade for lifetime.
