SUITABLE FOR:
Black / brown film, FPC board, plastic nameplates, mobile phone panels, membrane keypad, and medical use.
PRODUCT FEATURE:
PC-Based interactive windows with mouse operating tool makes procedure of the process become easier, faster and more efficient
Large and wide operational stage enables the object to be moved and rotated easily.
Minimum resolution of image process: 0.1 pixel. The center of target will be found out immediately even if the target is oval or imperfect.
Operational stage is equipped with vacuum mechanism so that work-piece could fix properly.

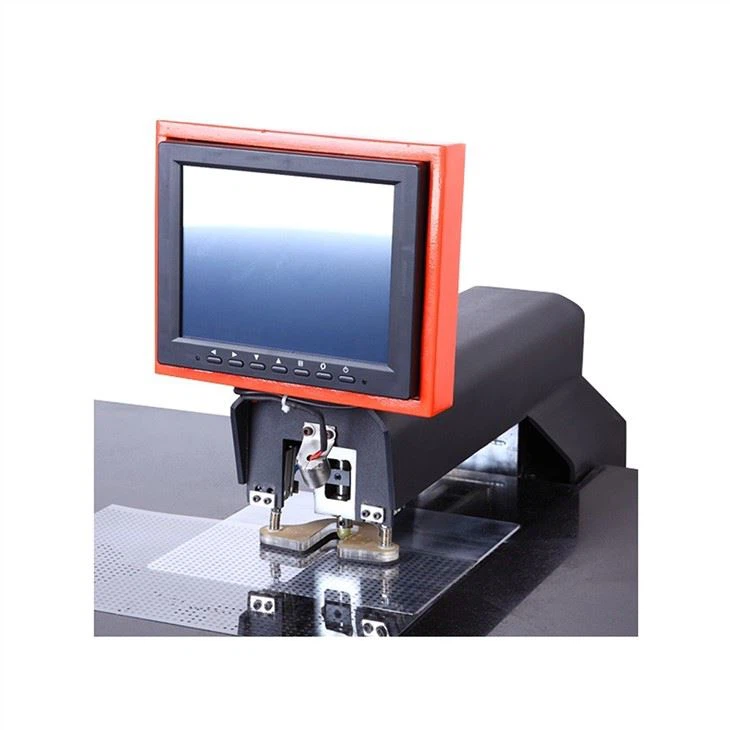

Target finding module- When the target is on the screen, the system will recognize it and punch immediately. Easy and convenient to use.
PRODUCT SPECIFICATION:
| Process Accuracy | ± 0.02mm |
| Process Speed | 0.4s/hole |
| Punch Size | Standard size Ø 1.0~5.0 mm |
| X-Y Axis Travel | Available view on operational screen |
| Illumination | Transparent LED & Reflecting LED |
| Max Punch Thickness | 3mm |
