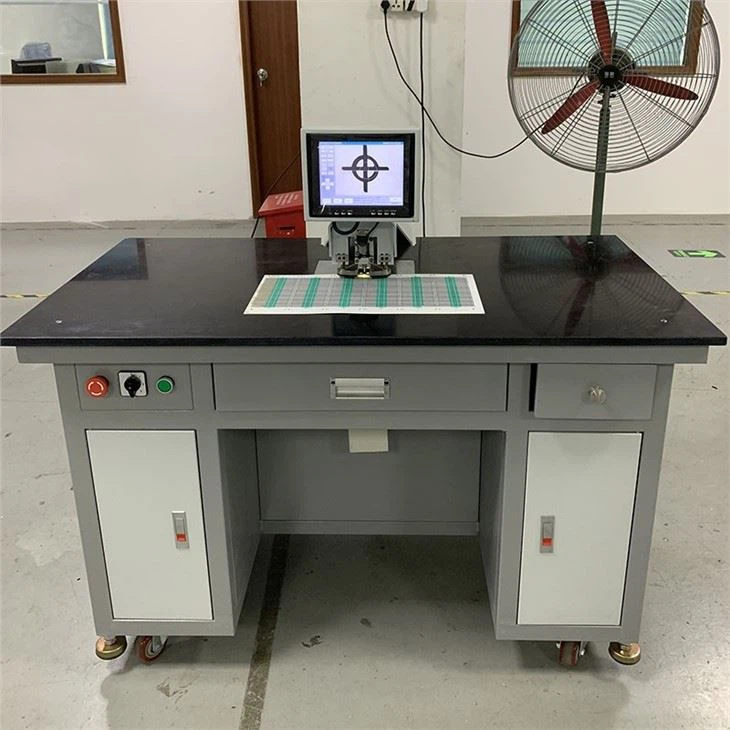

Application

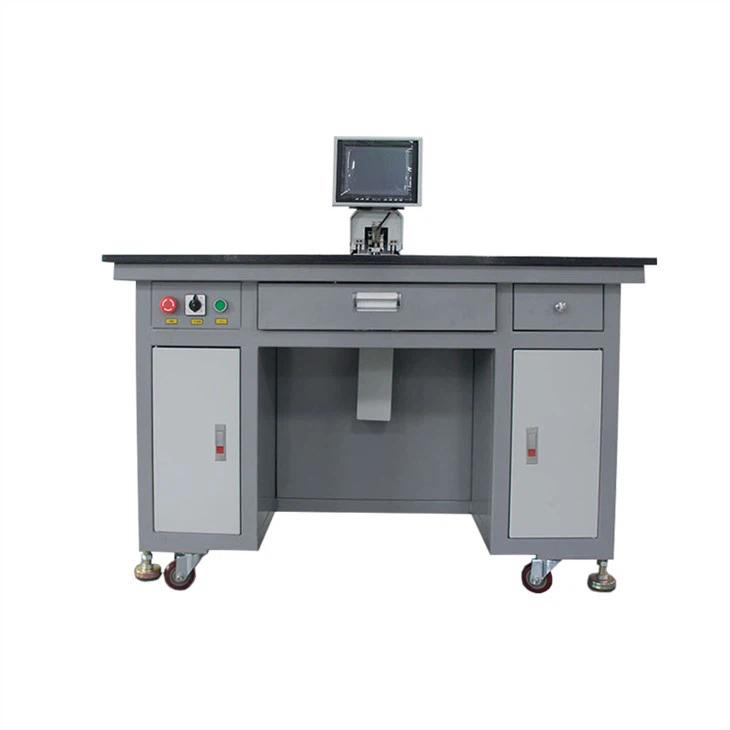

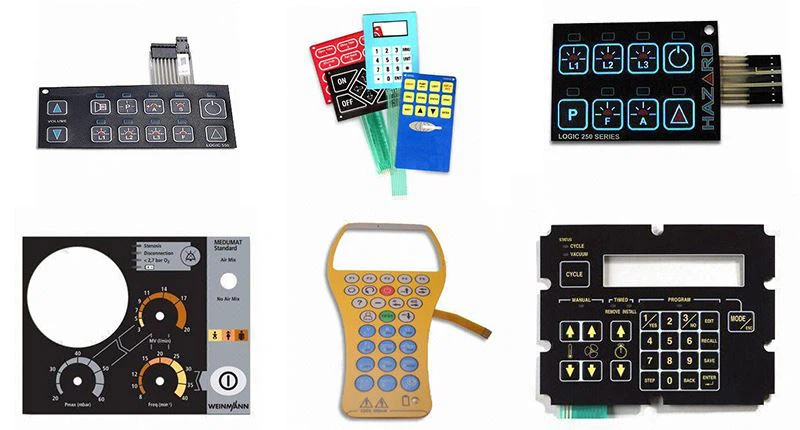

This semi automatic hole punching machine is perfect for graphic overlays, membrane switches, flexible printed circuits, PVC / PET / PC panels, nameplates, film, automotive dashboard, labels, stickers, printed electronics and so on.
Puncher Features
1. High precision: In the allowed identification range, the camera can find and analysis the target hole automatically, so that make sure the whole operation under control.
2. Speed fast: The camera fastly read the marks and automatically process precise punching.
3. Powerful: Sample template can be saved, and then can be used directly next time. Applying for Computer systems which supports software upgrade
4. Quality Assurance: The major components are from brand suppliers, such as relief valve, cylinder, and solenoid valve, rail and so on, it is stable and durable.
5. Simple operation: The working mode can be set directly on the touch screen because of man to machine interface.
6. High Identify: Using special light source, which can automatically recognize high-reflective or high-degree black holes and other materials that can hardly be identified by normal light source. As for incomplete target images, it can automatically compensate the lost parts of the image.
Hole Punch Parameters
| Model | VT015 |
| Punching precision | 0.02mm |
| Punching speed | 0.4s/hole |
| Punching thickness | 0.01mm~3mm (depend on material) |
| Punching diameter | Φ1mm~Φ5mm(OEM tooling) |
| Pressure requirements | 0.4~0.8MPa |
| Power Requirements | AC 220V 50HZ |
| Machine size | L1250mm x W780mm x H1150 |
Product Description
 | CCD Camera Positioning: *CCD camera positioning accuracy can reach ±0.02mm, high precision, speed is 0.4s/hole, greatly improve efficiency for production. |

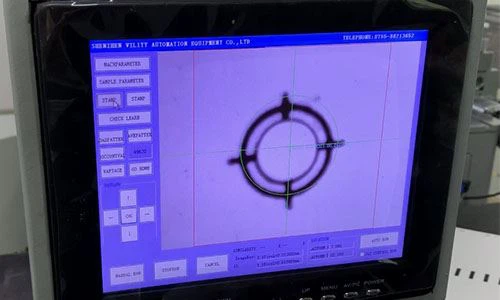

| Sampling Interface: *Computer control, interactive-communication operating system with mouse operating tool (Windows XP Operating System) enables the procedure of the process to become easier, faster, and more efficient. *Sampling records can be saved, and then can be used directly next time. *Computer systems can supports software upgrade for lifetime. *Default language is Chinese-English version. |  |

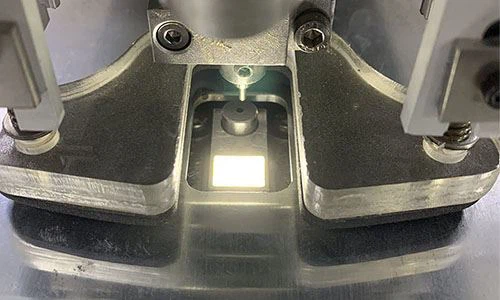

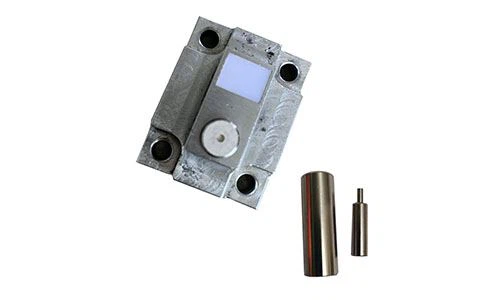

 | Punches & Punch Base: *Hole diameter1mm, 2mm, 3mm, 4mm, 5mm are available for this mold head. User can choose different tooling size to punch different diameter material. Beside, punch head also can be customized. *Special alloy steel longlife using, durable; high-speed white steel punching needle, smooth punching. |
Punching Samples
Our Service
Before Buying the Machine 1. Work with customer to choose a suitable model based on customer needs. 2. Testing sample for customer. 3. Develop or modify the machine to fit a special application. | After Buying the Machine 1. Our engineer go for machine installation and operator training. 2. Spare parts supply 3. Software upgrade. 4. Full life time maintenance service available | Operation Skills Transfer 1. We not only offer machine, but also transfer operation skills to customer. 2. Supply screen printing related materials and ancillary equipment. |
Packing & Shipping
CE Certificates & Patents
Company Workshops
FAQ
Q1: Are you manufacturer or trade company?
A1: We're manufacturer in shenzhen China, who have factory with about 8000m2 square area, warmly welcome to visit our factory at any time!
Q2: What's the leadtime?
A2: This machine is our hot sale product, production capacity reach more than 60 sets per month, we have stocks on hand, leadtime is 5 days (including testing and packing)after getting payment.
Q3: How do you give us training?
A3: We do provide video training and operation manuals, if it is necessary, our engineer will go to overseas for service.
Q4: What is the hole diameter?
A4: We have standard size 1mm,2mm,3mm,3.175mm,4mm,5mm, other size also can be customized, max size is 5mm.
Q5: Do you supply punches?
A5: Yes, we also can supply punches with machine according to customer's requirement.
Q6: What is the payment term and shipping term?
A6: Our payment term is 100% TT before shipping and shipping term is FOB shenzhen.
Q7: What is the speed of service in case of machine will not work?
A7: Basically, the rate of machine not working is rare, if customer have any problem, you could call us or leave message to us, we will response at first time(7*24 hours).
