Application:

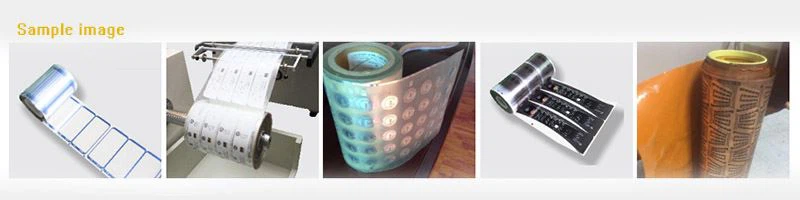

*.Mobile phone button, mobile phone panel, conductive film, membrane switch, film, IMD,IML,FPC and other flexible roll to roll material
*.This type of machine can automatically double-sided positioning and punching marked holes. With static elimination device
*.Can advise the pulling precision automatically
*.Can contact with die cutting machine or receiver machine at the end of this machine
Machine Parameters:
| Model | VTQ15-06 |
| Guide | NSK Japan |
| Screw | NEFF German |
| CCD Camera | SEIKO Japan |
| Motor | Raiser |
| Tooling material | SKD11 steel |
| Control System | VT position punching system in Chinese |
| Working area(XY) | 1200*660mm |
| Precision | ≤±0.02 |
| Hole Diameter | φ0.5~6.0mm(adjustable) |
| Working speed | 0.3s/hole |
| Material thickness | 0.05~3.0mm(adjustable) |
| Supply power | AC220V/50Hz/600W |
| light | White LED light |
| Air Source | Be dry,5~8kg-cm2,300NL/min |
| Weight | 220±20KG/set |
| Dimension | W1250mm*D770mm*H(770+260)mm |

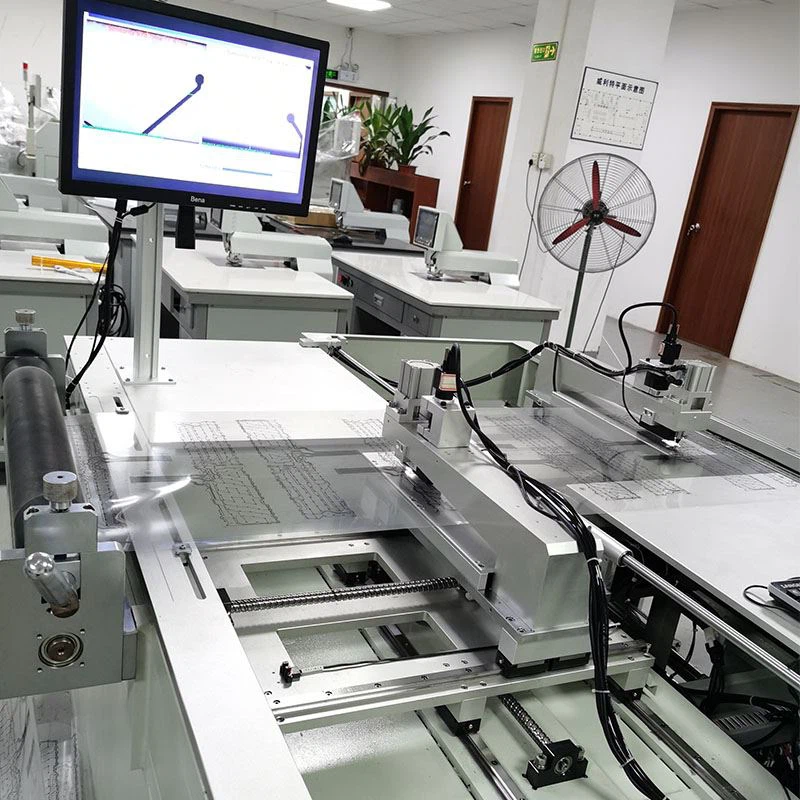

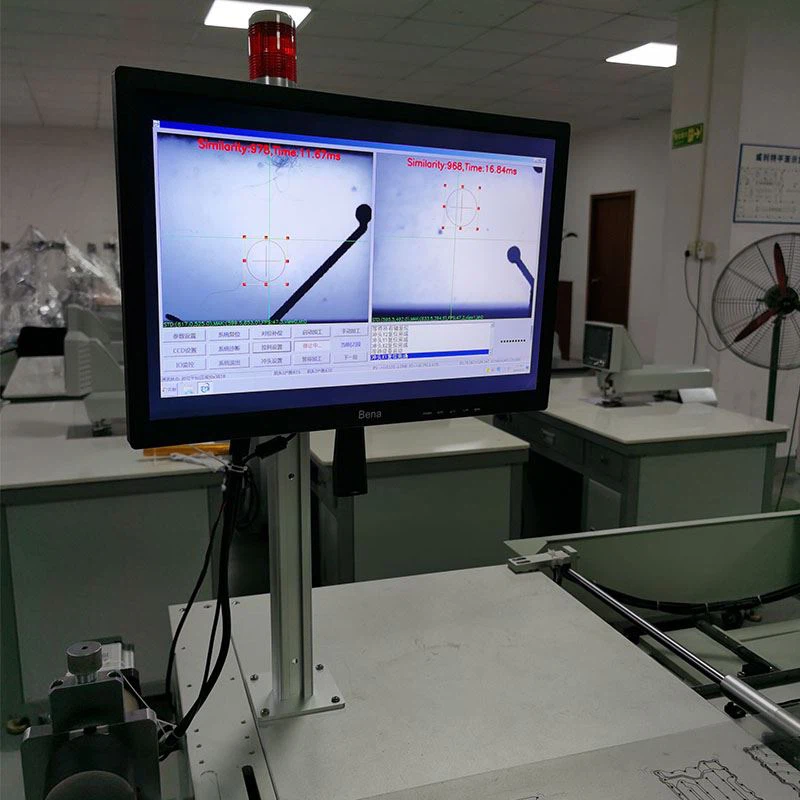

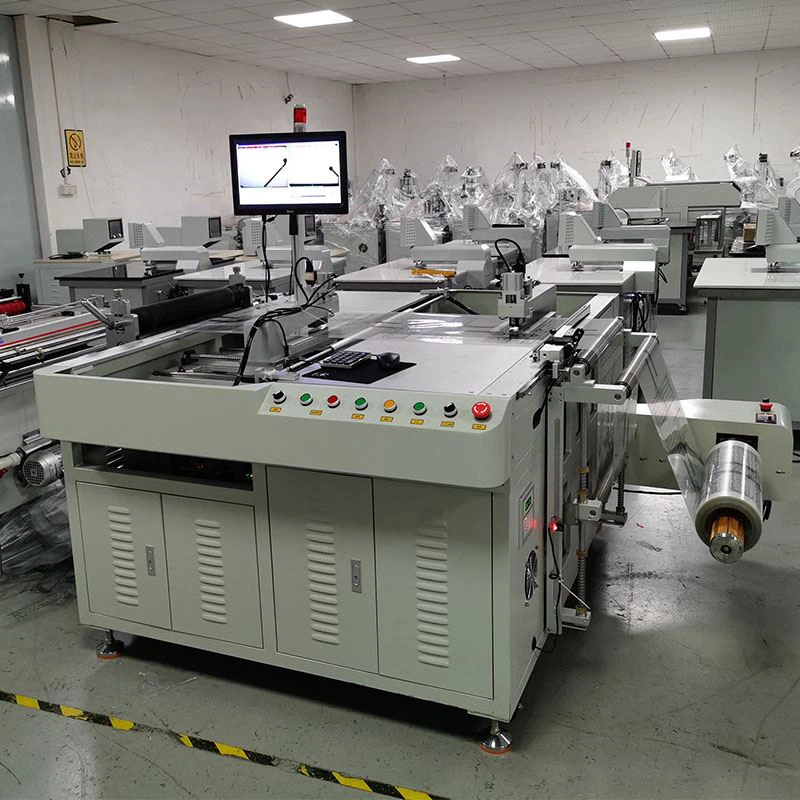

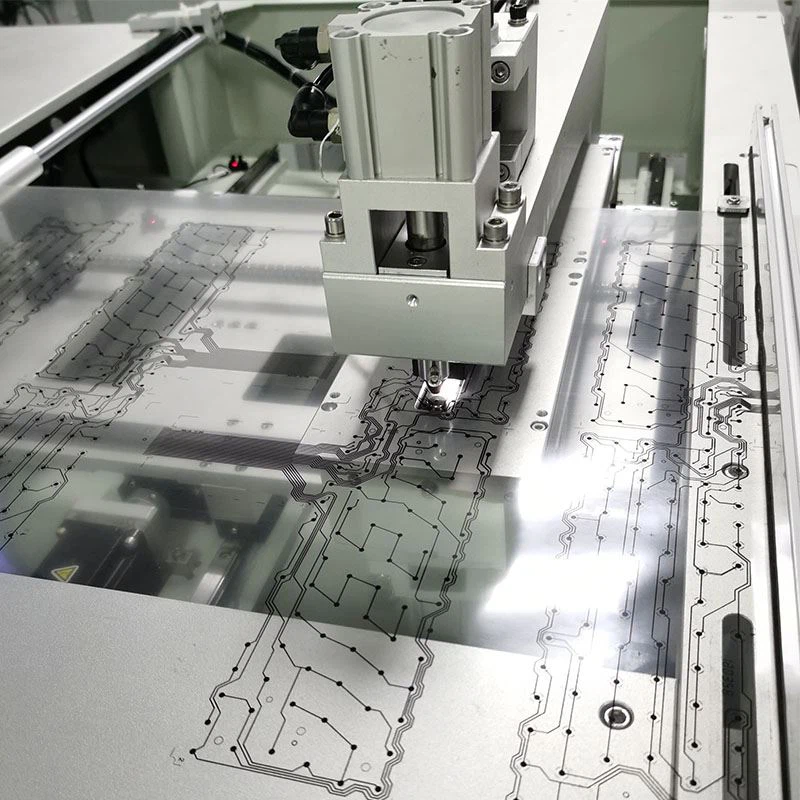

Image Details:
Why Choose Us:
1,We have a rich experience, technical good, service awareness ahead of the professional team, can be timely and effective solve the problem for you.
2,Installation and debug machine for you without any charge. Also, giving a technical training for your employees.
3,All of our machines can have one year guarantee and lifelong maintenance.
After-sales:
* Spare parts
* Video technical and online support
* Field maintenance and repair service
* Engineers available to service machinery overseas.
