SUITABLE SUBSTRATE
Membrane switchwes, membrane panels, nameplates, aluminum substrates, mobile device panel, graphic overlays, labels, stickers, polycarbonates, PET, IML/IMD, black/brown film, printed flexible circuits, etc.

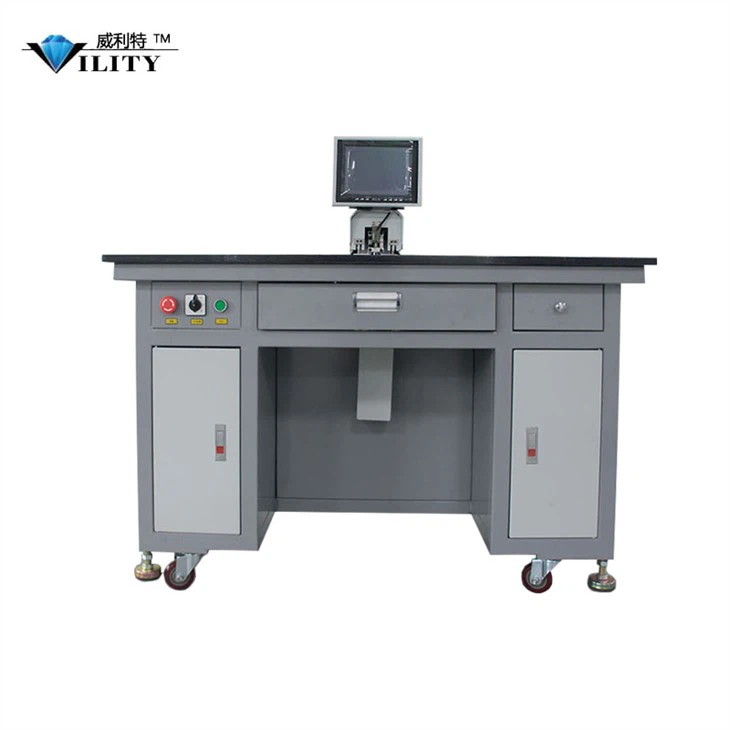

PUNCHER FEATURES
* PC-industrial windowsXP system with mouse operating tool makes procedure of the process become easier, faster and more efficient.
* Large and wide operational stage(marble table) enables the objects to be moved and rotated easily.
* Minimum resolution of image process: 0.1 pixel. The center of target will be found out immediately even if the target is unperfect.
* LED light source provide either on transparent light or reflecting light, this could enhance the accuracy of recognition of target
* The operational stage is equipped with pneumatic mechanism so that work-piece could fix properly.
* Target finding module- When the target is on the screen, the system will recognize it and punch immediately. Easy and convenient to use.
PUNCHER SPECIFICATION
| Model | VT015 |
| Substrate thickness | Within 1mm |
| Effective working stage | L1250mm x W600mm |
| Air supply | 0.4-0.8MPa |
| Power supply | AC 220V 50Hz |
| Punch diameter | Ø1.0-5.0mm |
| Punching force | 2.5kN |
| Punching speed | 0.4s/hole |
| Process accuracy | ± 0.02 mm |
| Weight | 200kg |
| Machine dimension | L1250mm x W770mm x H1150mm |
