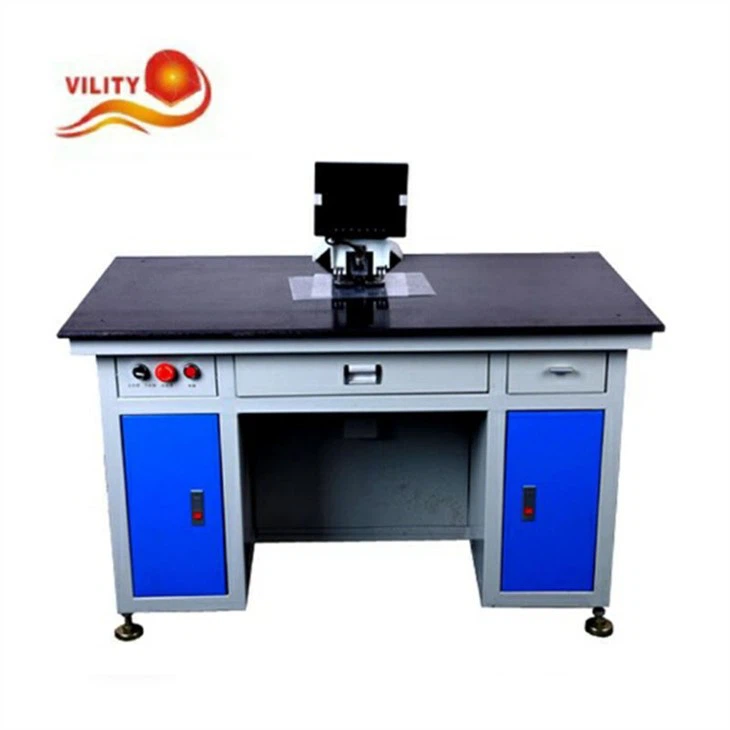

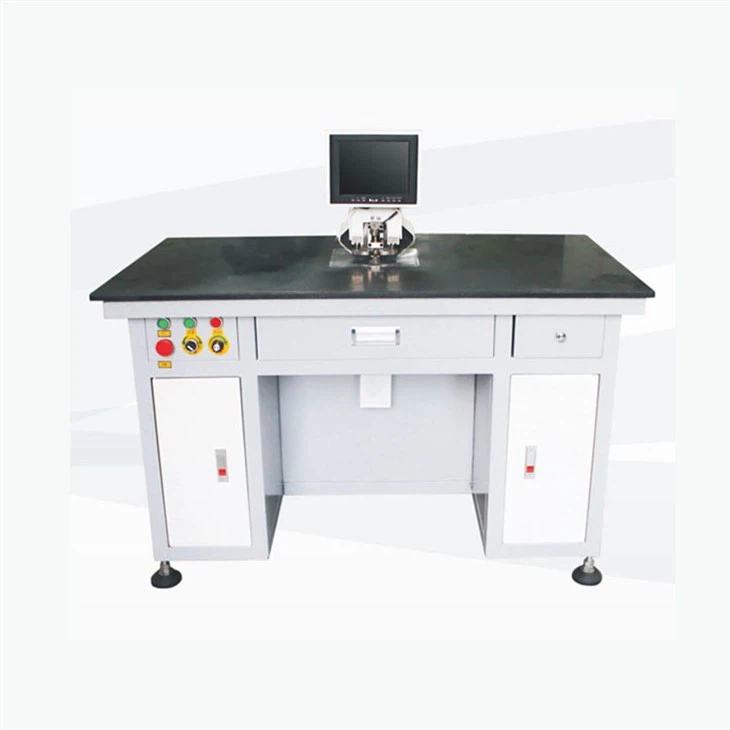

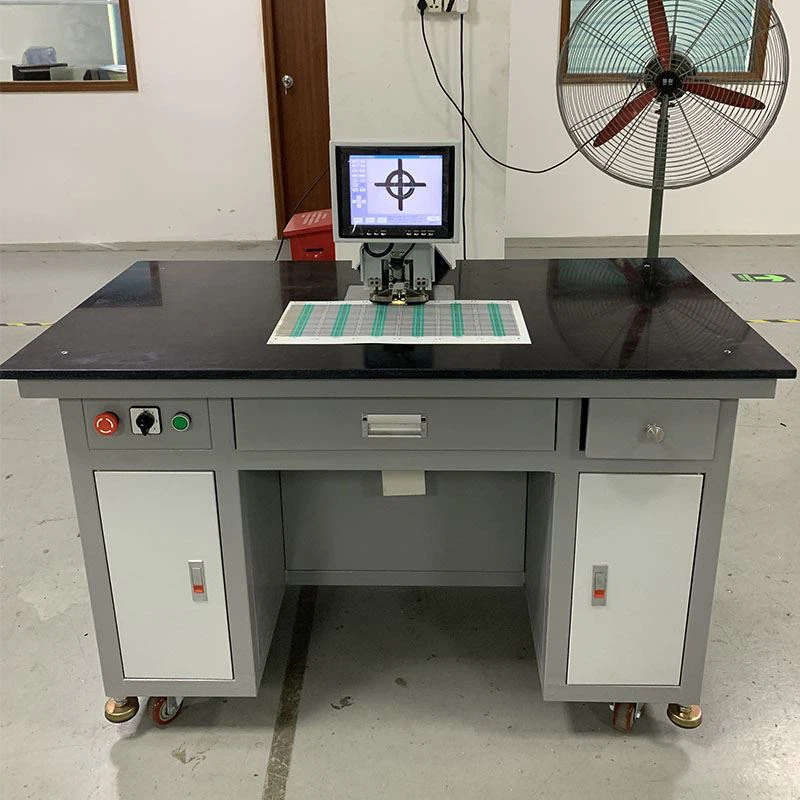

Automatic Positioning Hole Punching Machine

Apply for: Mobile phone keys/mobile phone panels, films, label, stickers, aluminium plate, FPC soft boards, film/brown films/black diazo films, IML/IMD, electronic membrane switches and other flexible soft boards; PCB fiberglass boards, PVC/PET/PC panels, nameplates Positioning and drilling of non-metallic materials etc.

Send Inquiry

Chat Now

Description

Machine feature:

All sheets are OK; CCD automatic positioning and punching;
High accuracy, high quality, high speed, labor saving;

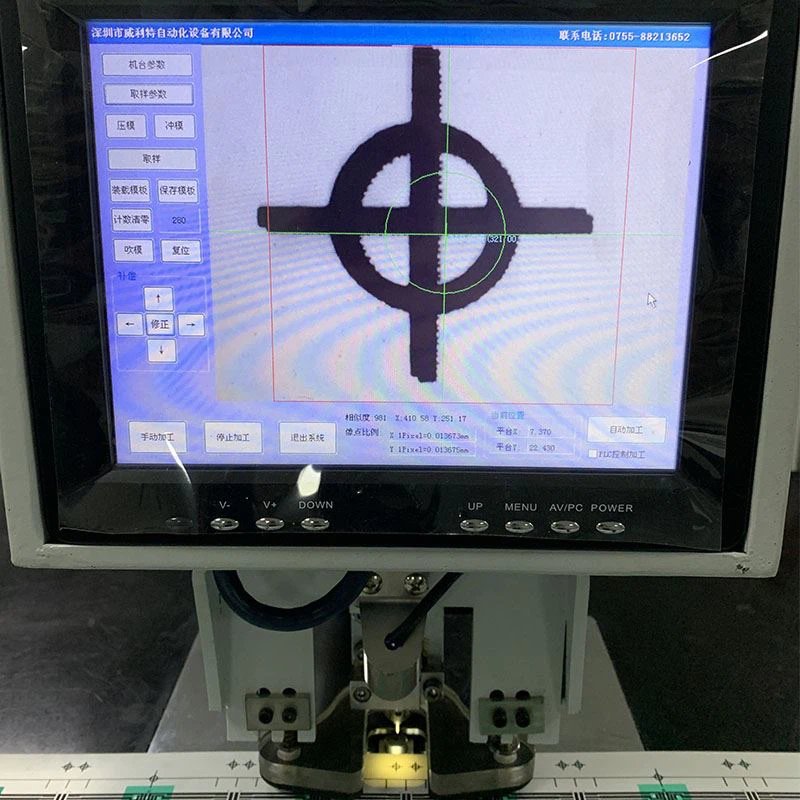

Computer working system, man-machine interface, setting working mode directly on the touch screen, simple and intuitive;

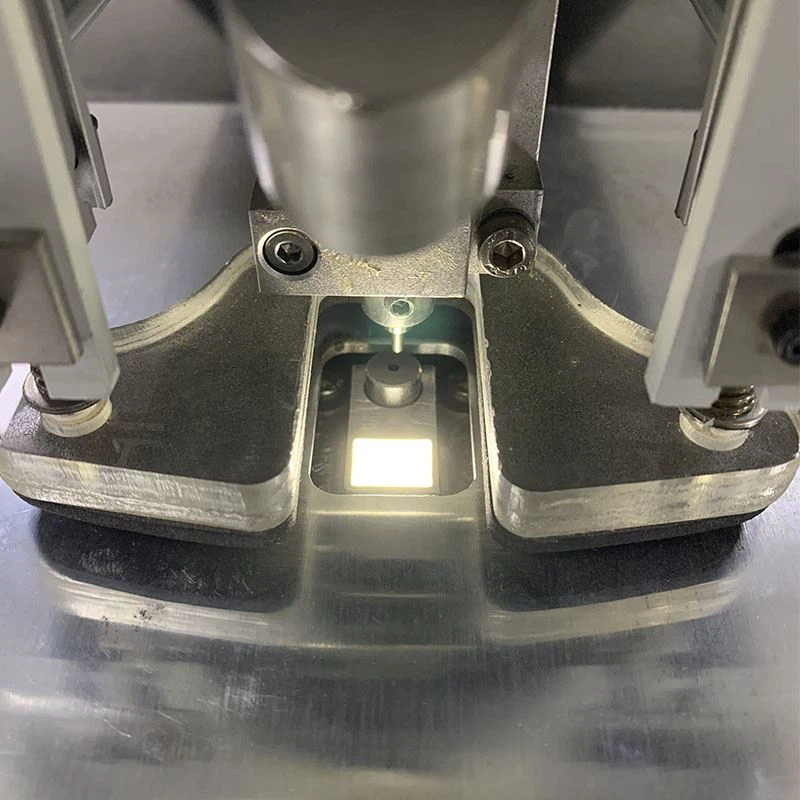

When punching, the punched film is flattened by the presser foot on the equipment to make punching more precise;

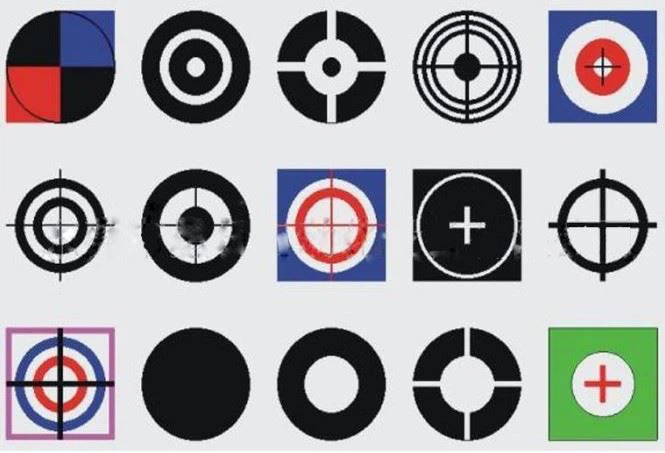

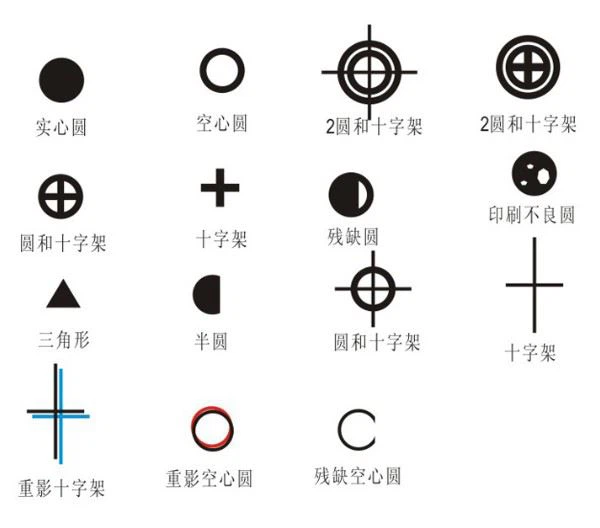

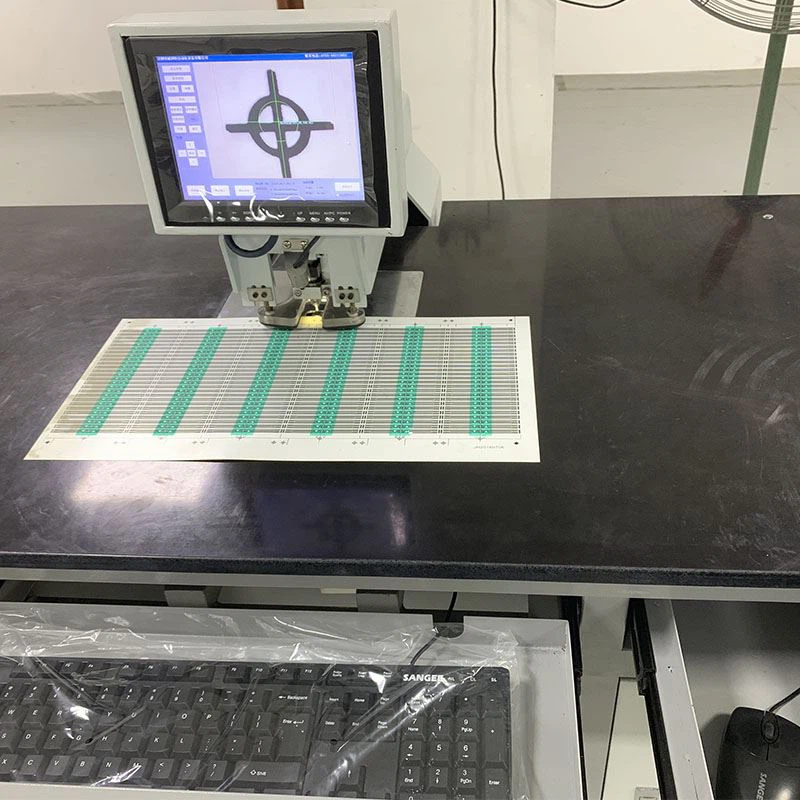

Special light source recognition method, which can automatically recognize circular diagrams on various materials and automatically align and punch holes;
It can print incomplete circles with unclear printing or more than a semicircle, special printing materials, reflective mirror materials and so on.

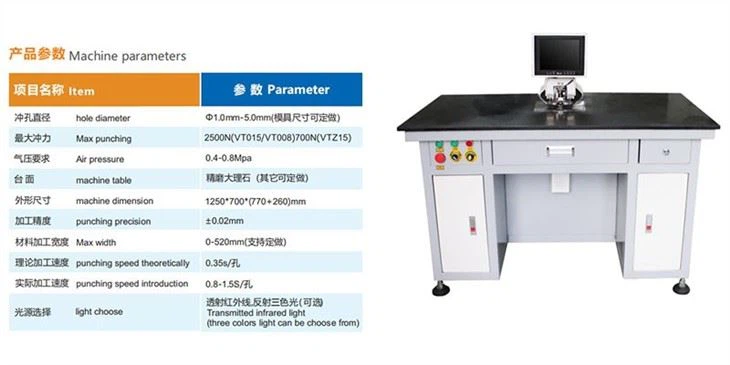

Machine Parameters:

Machine size	L1200mmW700mmH1250mm
Weight	220kg
Punching Precision	±0.02mm
Tooling material	SKD11 steel
Max width	0-520mm(accept customize)
Hole Diameter	Φ1.0~5.0mm
Working speed	0.4s/hole
Table material	grinding marble(could customize)
Power	500W
Voltage	AC240V/50Hz
Control System	VT position punching system in English
