Brief Introduction:
The equipment is used in PCB circuit board, FPC soft board, IMD/IML, film, diazo film, mobile phone panel, mobile phone button, sticker, membrane switch, film, PE, PC, PVC, PET film, polyester film, Thin aluminum, aluminum substrate, FR4 glass fiber board and many other materials.
Features:
（1）Function：sheet materials are ok; CCD automatic positioning hole drilling.
（2）High accuracy, the overall error is less than or equal to 0.04mm.
（3）The drilling speed is fast, the average drilling speed is 7-8 times of the manual drilling speed, only 0.5s/hole.
（4）No dragging, precise positioning of icons and automatic drilling；
（5）Flexible materials and fragile materials such as acrylic sheets can be hit by the machine without damaging the materials. Fast speed, free software upgrades for life；

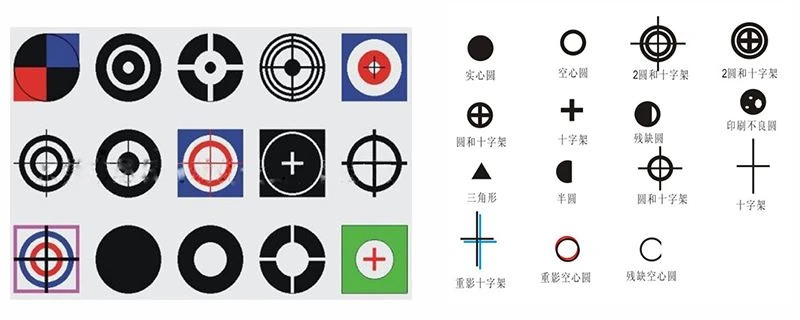

Grabable target graphics:

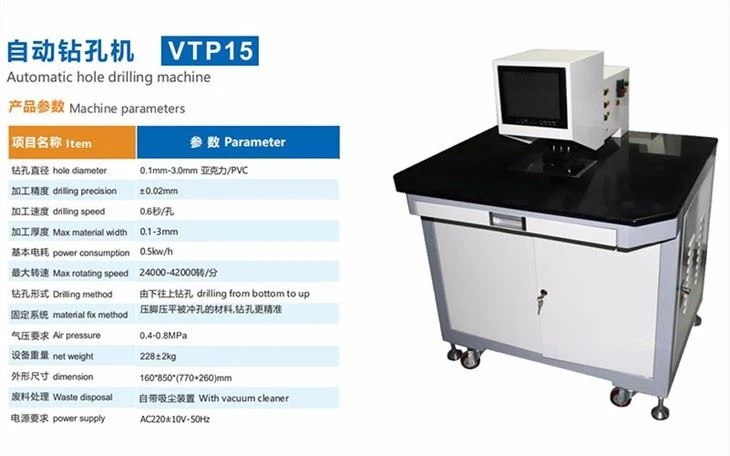

Machine Parameters:
| Precision | ≦±0.04mm |
| Speed | 0.6s/hole |
| Drill diameter | Ø0.1mm～ø3.5mm |
Thickness | 0.1mm~5.0mm(depend on material） |
| Max rotating speed | 24000-42000r/min |
| The method of drilling | From bottom to top |
| Light sources select | Project infrared, reflect infrared |
| Air pressure requirement | 0.4~0.8Mpa |
| Equipment weight | 228+2KG |
Outlook size | 160*850*(770+260) |
| Waste disposal | Comes with vacuum device |
| Voltage | 220V 50hz |
| Power | 1KW |
