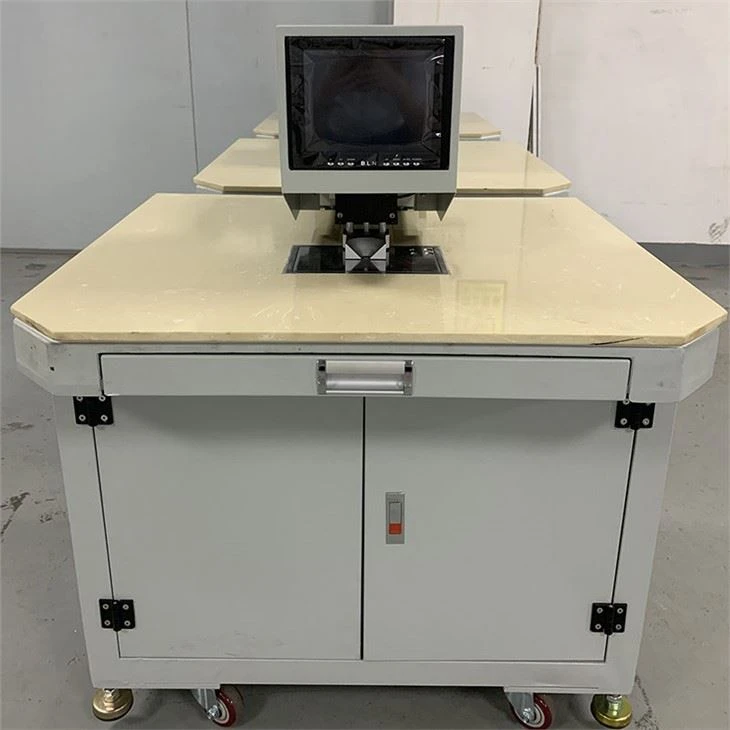

Brief Introduction:
The equipment is widely used in printing and packaging, electronic printing, nameplates and other industries for post-printing counter-drilling.Mainly apply for PCB mulyilayer board, fiberglass board, composite board, PVC panel and other fragile plastic.
Features:
（1）Computer working system, man-machine interface, set working mode directly on the touch screen, simple and intuitive；
（2）Special light source recognition method, can automatically recognize circular diagrams on various materials, and automatically align drilling；

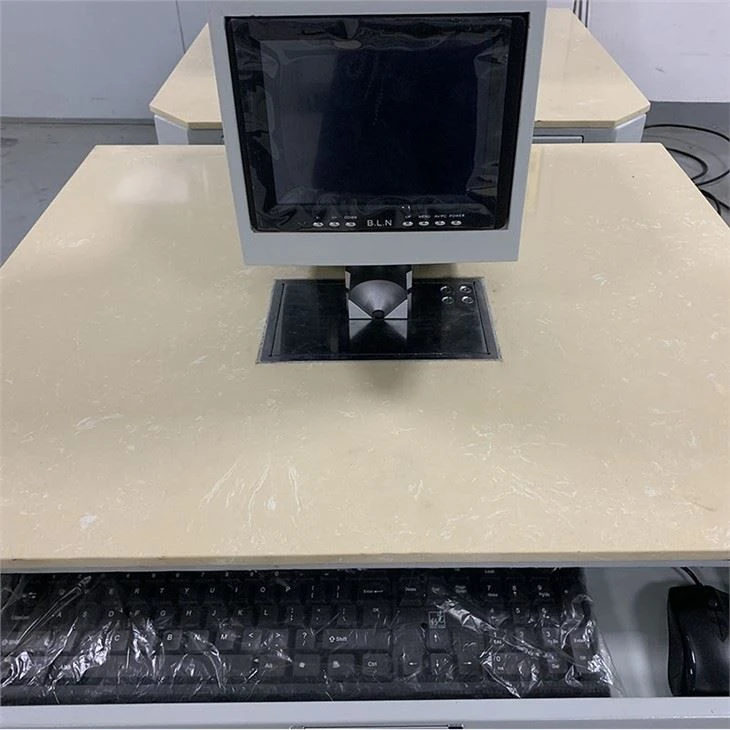

（3）When working, you can directly watch the drilling live on the 8-inch computer screen or the drilling place；
（4）When drilling, the presser foot on the equipment flattens the drilled film, making the drilling more precise；
（5）Specialized settings can be provided. The computer system can be upgraded, and provide you with strong professional technical support;
（6）Image processing: Binary integrated image processing method;
（7）Can print incomplete circles with unclear printing or more than a semicircle, special printing materials, reflective mirror materials, etc.
Grabable target graphics:
Machine Parameters:
| Precision | ≦±0.04mm |
| Speed | 0.6s/hole |
| Drill diameter | Ø0.1mm～ø3.5mm |
Thickness | 0.1mm~5.0mm(depend on material） |
| Max rotating speed | 24000-42000r/min |
| The method of drilling | From bottom to top |
| Light sources select | Project infrared, reflect infrared |
| Air pressure requirement | 0.4~0.8Mpa |
| Equipment weight | 228+2KG |
Outlook size | 160*850*(770+260) |
| Waste disposal | Comes with vacuum device |
| Voltage | 220V 50hz |
| Power | 1KW |
