Application
Black/Brown Film, Flexible PCB, Plastic Nameplate, Mobile Device Panel, Metal Nameplate and Membrane Switch Panel.
Machine Features
PC-Based interactive windows with mouse operating tool makes procedure of the process become easier, faster and more efficient
Large and wide operational stage enables the object to be moved and rotated easily.
Minimum resolution of image process: 0.1 pixel. The center of target will be found out immediately even if the target is oval or imperfect
LED light source provide either on transparent light or reflecting light, this could enhance the accuracy of recognition of target
Operational stage is equipped with vacuum mechanism so that work-piece could fix properly

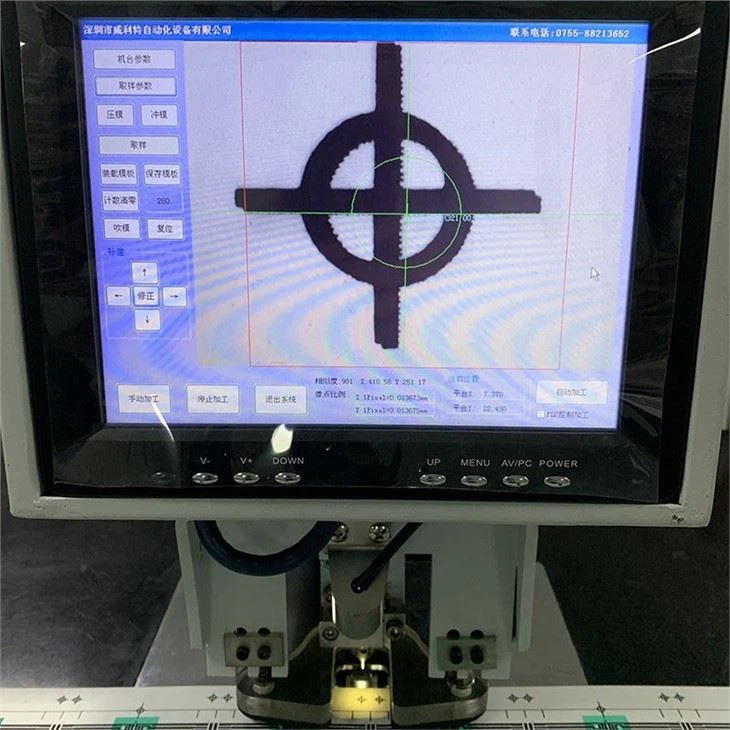

Target finding module- When the target is on the screen, the system will recognize it and punch immediately. Easy and convenient to use.
Machine Parameters
| Machine size | L1250mm*W770mm*H1200mm |
| Weight | 220kg |
Punching Precision | ±0.02mm |
Tooling material | SKD11 steel |
| Max width | 0-520mm(accept customize) |
| Hole Diameter | Φ1.0~5.0mm |
Working speed | 0.4s/hole |
| Table material | grinding marble(could customize) |
| Power | 1000W |
| Voltage | AC220V/50Hz |
| Control System | VT position punching system in English |

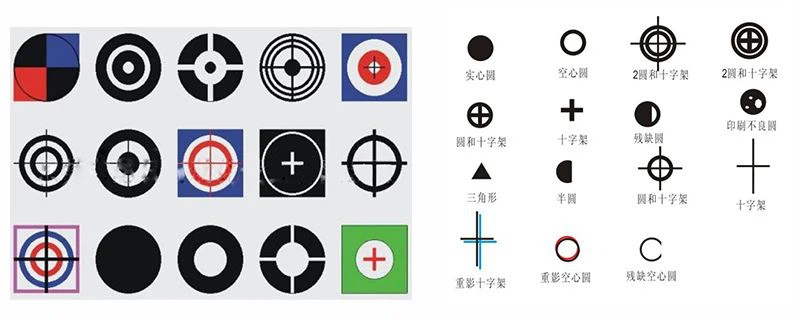

Grabable target graphics
