Applicable Scope

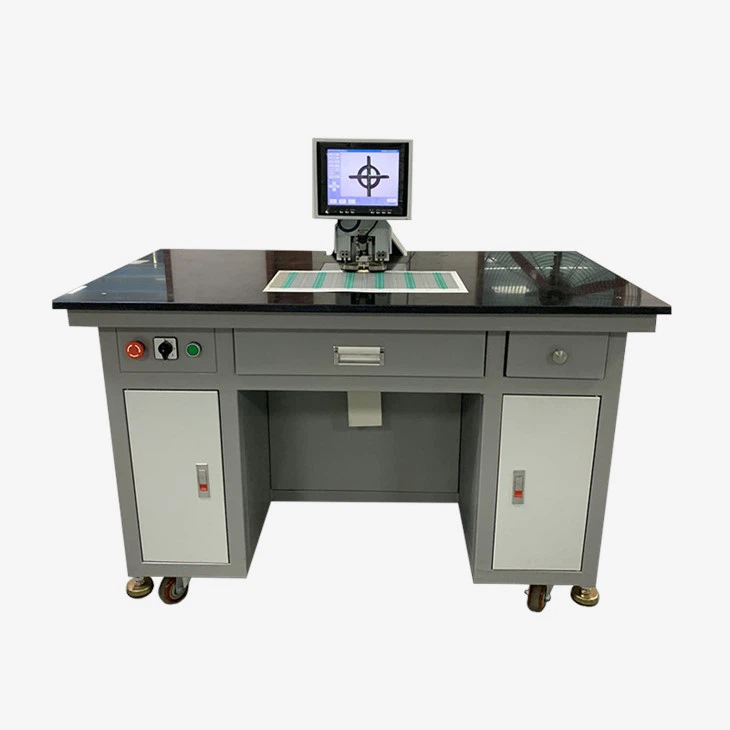

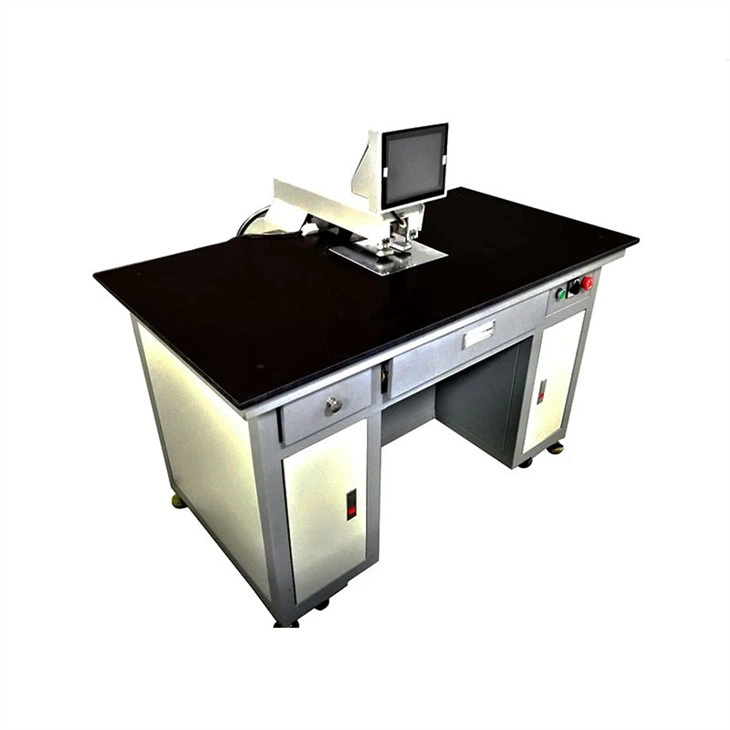

This semi-auto ccd target hole punching machine is perfect for flexible PCB circuits, FPC, film, Diazo tablets, mobile phone panel, mobile phone keypads, self-adhesive labels, membrane switches, PE, PC, PVC, PET film, Aluminium plate and other thin film.
Machine Features
1. Camera automatically captures marks and punches, no need to step on the footpaddle;
2. Equipped with large marble working table, it is easy to operate;
3. It adopts industrial window XP system, it's stable and durable;
4. It adopts imported linear guide rail and screw rod, high precise punching;
5. Upper light and bottom light is switchable , the upper light has three types of lights, green, red and blue. It doesn't matter is transparent or opaque substrate and can clearly read the marks.
Punches Parameters
| Model | VT015 |
| Process Accuracy | ± 0.02mm |
| Process Speed | 0.4s/hole |
| Punch Size | Standard size Ø 1.0~5.0 mm |
| Punch force | 2.5KN |
| X-Y Axis Travel | Available view on operational screen |
| Illumination | Transparent LED & Reflecting LED |
| Punch Thickness | 0.1-1mm |
Main Configuration
| Name | Brand | Origin |
| Guide rail/sliding block | THK | Japan |
| Screw rod | HIWIN | Taiwan |
| CCD Camera | VILITY | VILITY |
| Air cylinder | AIRTAC | Taiwan |
| Magnetic valve | AIRTAC | Taiwan |
| Software system | VILITY | VILITY |
