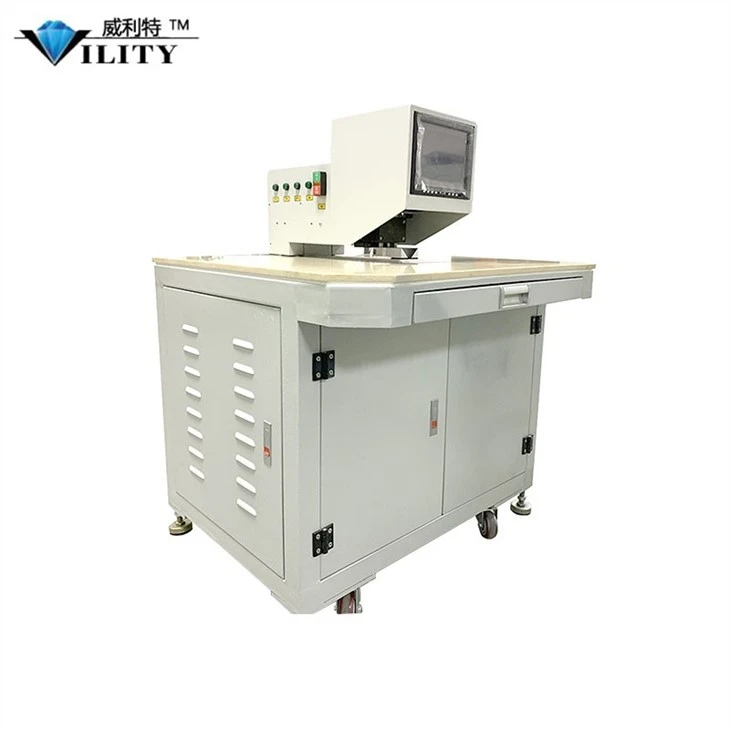

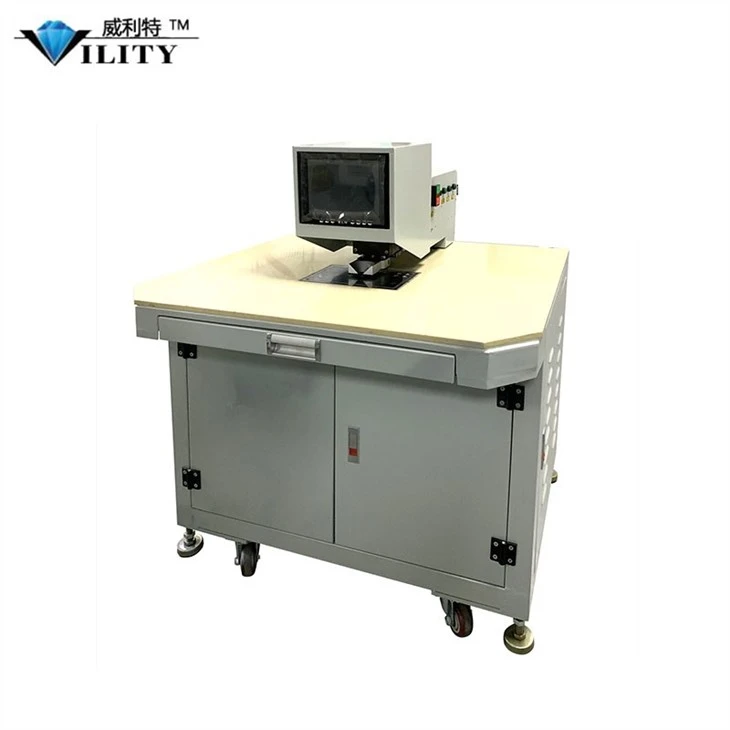

Semi-auto CCD Guide Hole Drilling Machine

Applicable Scope

This ccd target hole drilling machine is perfect for single side PCB, flexible PCB, Inner-layer PCB, multi-layer PCB, FR4, acrylic board, fiberglass board, composite board, PVC panel and other fragile plastic.

Machine Features

1. Even if the marks are deformed or imperfect, the process of drilling holes can still work perfectly;

2. Target finding module- When the target is on the screen, the system will recognize it and drill immediately, easy to operate.

3. Large and wide operational stage enables the work-piece moved and rotated easily

4. Transparent light and reflect light enhance the accuracy of reorganization of the target shape

5. Users can either choose high efficient spindle or high speed spindle in order to proceed the substrate of thick PCB, thin PCB, film, FPC

6. Default language is English and Chinese.

Technical Parameters
