Application:
It is very suitable for film precision printing of various products such as electrical, electronics, automobiles, motorcycles and so on. Such as cold light board, light guide plate, diffuser, touch panel, flexible circuit board, circuit board BGA, touch screen circuit, and products with higher film thickness.

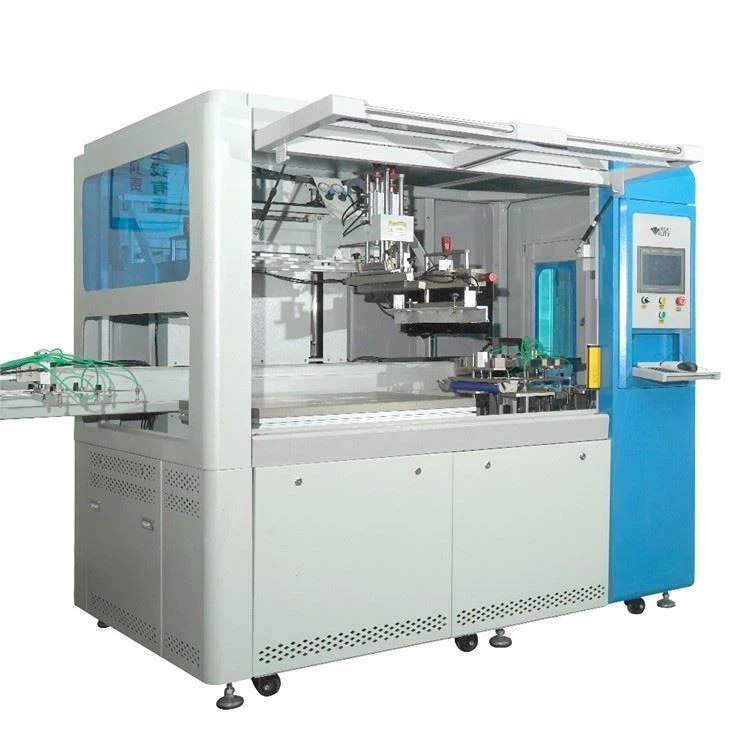

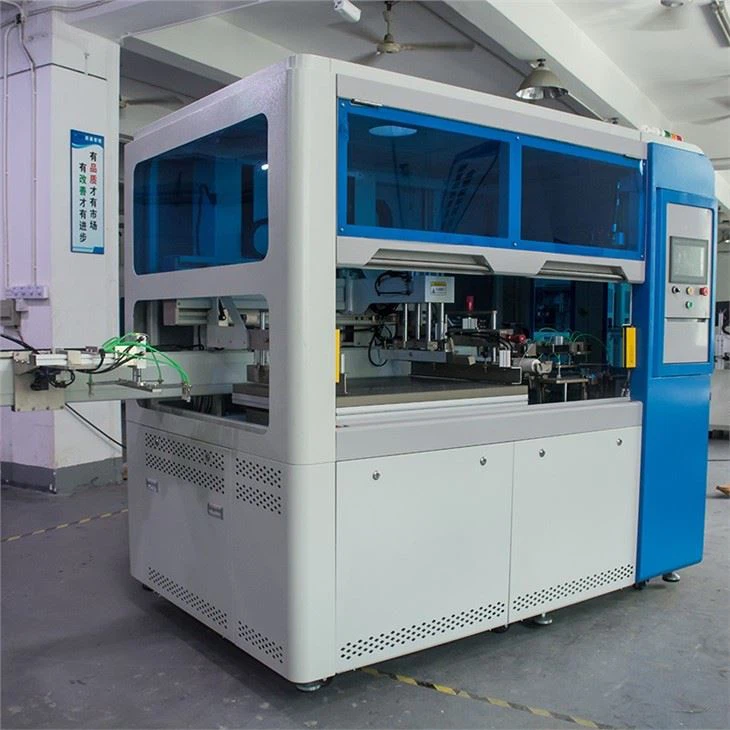

Machine Features:
1. 21-inch LED display is convenient for CCD image alignment setting and monitoring.

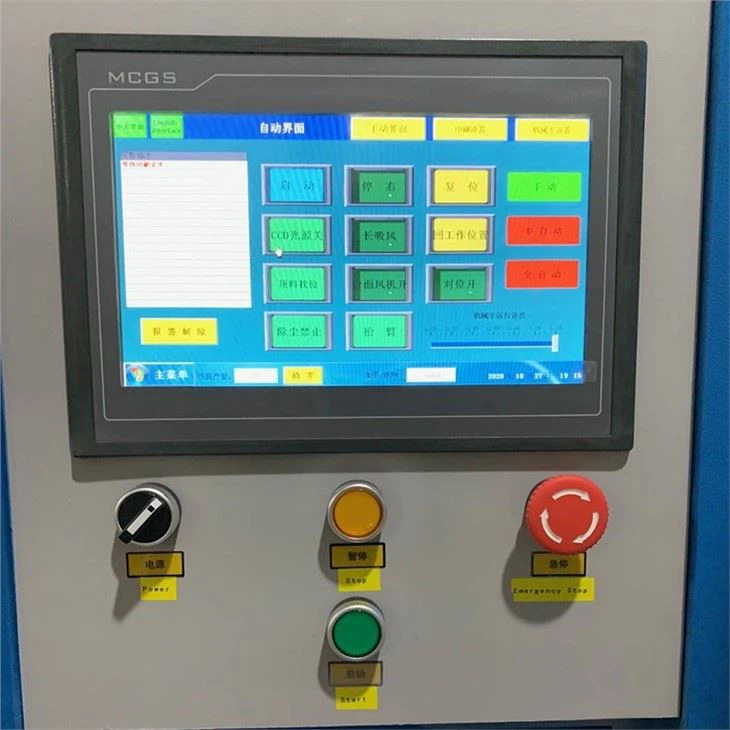

2. Touch screen operation, simple, touch sensitive, convenient and safety.
3. The front and rear independent lifting structure of the screen, servo + ball screw drive, ensure the stability of the distance between the plates and facilitate the inspection and cleaning of the screen
4. The CCD alignment method adopts a dual-lens industrial camera with a pixel of up to 1.3 million. The dual-lens adopts a diagonal design to realize fast and accurate search for the registration point.
5. Automatic feeding structure, equipped with electrostatic ion bar, ion blower, mechanical double sheet separator, etc., to realize automatic feeding without double sheet.
6. Automatic unloading structure, automatic online operation can be carried out, saving labor and ensuring printing quality.
7. The squeegee base adopts a vertical servo lifting structure, which moves the ink left and right through the linear guide rail, which is stable and high precision.
8. The replaceable automatic dust removal roller realizes dust removal and flattening functions to ensure that the surface of the material is printed without dust, and the suction is flat and five creases.
9. The alignment platform adopts XYθ structure, high-performance alignment system + high-precision grinding grade ball screw to ensure alignment stability and alignment accuracy.
Machine Parameters:
Printing table size | 780*1100 mm (special dimensions customizable) |
Printing size: | 600x900mm (special dimensions customizable) |
Frame size: | 900x1100mm (special dimensions customizable) |
Maximum screen frame thickness: | 25 - 55 mm (special dimensions customizable) |
| Power specifications: | 3 phases, 380V, 50Hz 5KW |
Air supply pressure: | 4- 6 kg/PSI |
Air consumption: | 2.6L/cycle |
CCD positioning accuracy: | ±0.02 mm |
Printing accuracy (non-material shrinkage, and screen expansion): | ±0.05 mm |
CCD center distance: Adjustable range | Horizontally:200mm-500mm(specialdimensions ustomizable) |
Machine dimension: | 3630*1600*2100 mm |
Machine weight: | About 1500 KG |
After-sales service:
* Lifelong maintenance
* Spare parts
* Video technical and online support
* Field maintenance and repair service
* Engineers available to service machinery overseas.
