CCD Guide Hole Drilling Machine For PCB Board

CCD Guide Hole Drilling Machine

Application:

The equipment is widely used in printed fragile plastic sheets such as single and double panels, PCB multi-layer boards, glass fiber, PVC panels and acrylic sheets.

Machine Features:

(1)Function:sheet materials are ok; CCD automatic positioning hole drilling.
(2)High accuracy, the overall error is less than or equal to 0.02mm.
(3)The drilling speed is fast, the average drilling speed is 7-8 times of the manual drilling speed, only 0.5s/hole.
(4)No dragging, precise positioning of icons and automatic drilling;
(5)Flexible materials and fragile materials such as acrylic sheets can be hit by the machine without damaging the materials.
Fast speed, free software upgrades for life;
(6)Computer working system, man-machine interface, set working mode directly on the touch screen, simple and intuitive;
(7)Special light source recognition method, can automatically recognize circular diagrams on various materials, and automatically
align drilling;

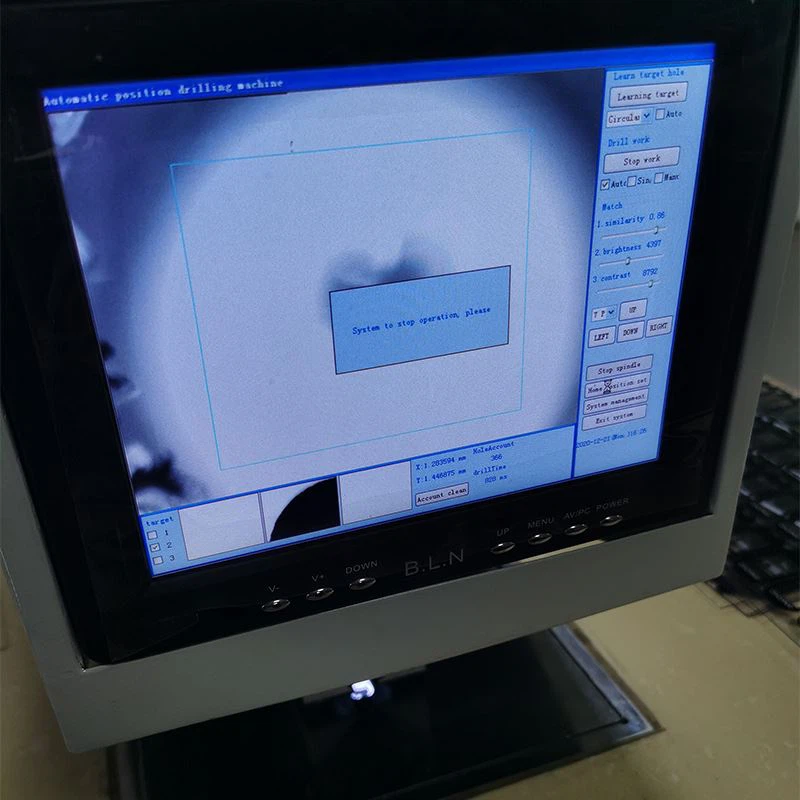

(8)When working, you can directly watch the drilling live on the 8-inch computer screen or the drilling place;
(9)When drilling, the presser foot on the equipment flattens the drilled film, making the drilling more precise;
(10)Specialized settings can be provided. The computer system can be upgraded, and provide you with strong professional
technical support;
(11)Image processing: Binary integrated image processing method;
(12)Can print incomplete circles with unclear printing or more than a semicircle, special printing materials, reflective mirror
materials, etc.

Machine parameters:

Machine Description:

Machine outlook is not only looking single and beautiful, but also is long life using, one machine almost can be used for 10 years.

Machine table adopts refined marble, beautiful and makes people feel comfortable, it can accept the max working width 500mm for drilling, its surface marble is smooth prevent the sample from scratching.

There's up and down light source for selection, according to your material transparent level, you can select the best light source for your samples to easily identify the mark point.
The blow function is to blow the scrap after drilling, it can keep drilling smoothly all the time.

Its CCD camera adopts brand Mintron,  control system was developed by Vility, we got patern for this invention, so, we can give client free system upgrade for longlife as long as buying our machine.

CCD camera positioning accuracy can reach ±0.02mm, high precision, speed is 0.6s/hole, greatly improve efficiency for production.

PLC control system, default language is Chinese-English version, it's very easy to operate. It also has memory function and can save the record for sampling, it's very convenient for client to find back previous setting to drill directly.

Guide and screw are HIWIN brand from Taiwan, motor is China Laser brand.

After finished sampling setting, as long as you put the material to the CCD camera area, it will identify the mark point on the material and then automatically drill.

Grabable target graphics:

As long as there're below mark points on your material, our CCD camera can identify it and and do punching automatically.

Drilling Samples:

After-sales Service:

* Lifelong

* Spare parts

* Video technical and online support

* Field maintenance and repair service

* Engineers available to service machinery overseas.
