Applicable Scope

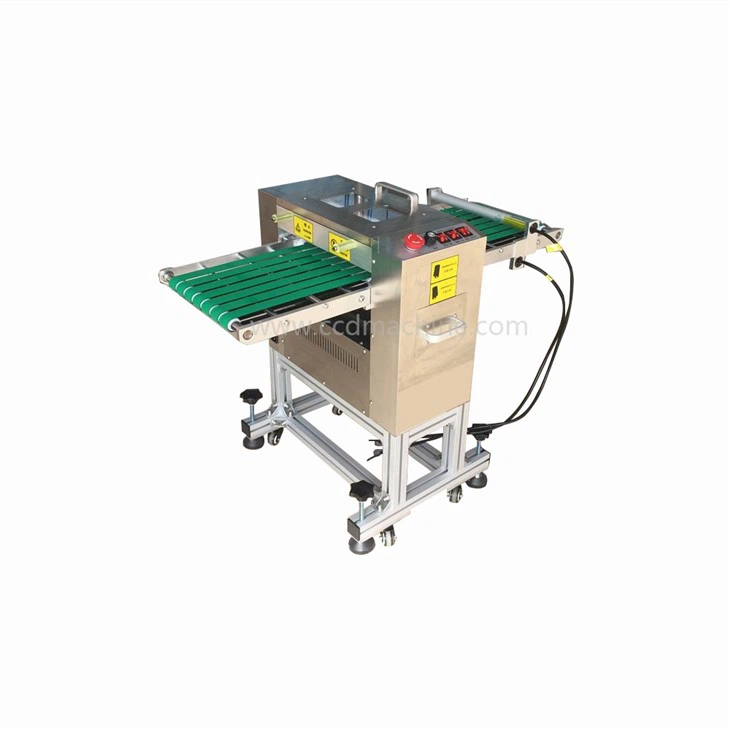

This dust removal machine is used for touch screen, panels, diffusers, acrylic board, light guide plates, glass and other substrates for cutting, coating, laminating, printing, assembling, inspection and other substrate cleaning operations.
Product Features
1. Double sides clean, eliminate static, aumatically separate the sticky paper;
2. The loader is designed with drawer structure, it is easy to cut or replace the roller;
3. Equipped with roller driver, the drawer automatically enter and withdraw;
4. It has strong ability of eliminating static and cleaning dust;
5. It doesn't scratch the material when process cleaning dust;
6. The cleanliness value can be set according to the requirements, it will alarm when reach to the set number.
Technical Parameters
| Model | VT550DC |
| Sticky paper thick | 0.1mm-3.2mm |
| Working size | length ≥100mm, width≤550(customizable) |
| Roller speed | 0-35M/Minute(adjustable) |
| Equip sticky paper roller | 2*550mm￠76 |
| Power supply | 360W AC 220V 10A |
| Air pressure | 3-5kg/cm2 |
| Working height | 950mm±50mm |
