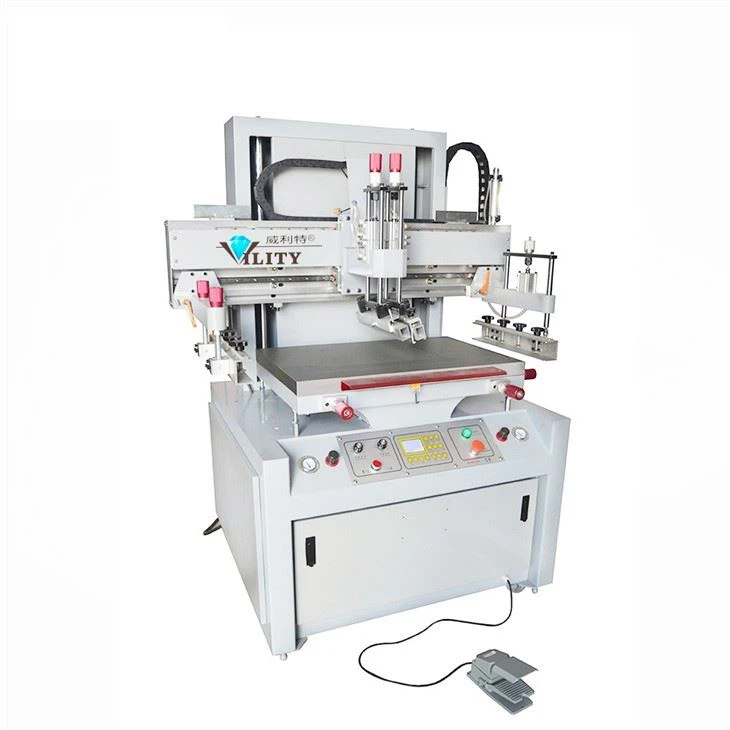

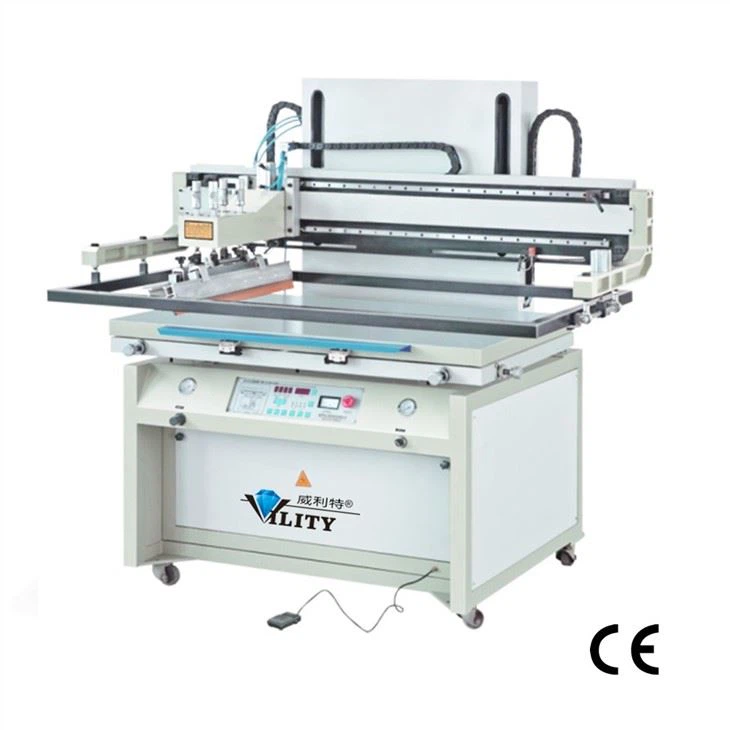

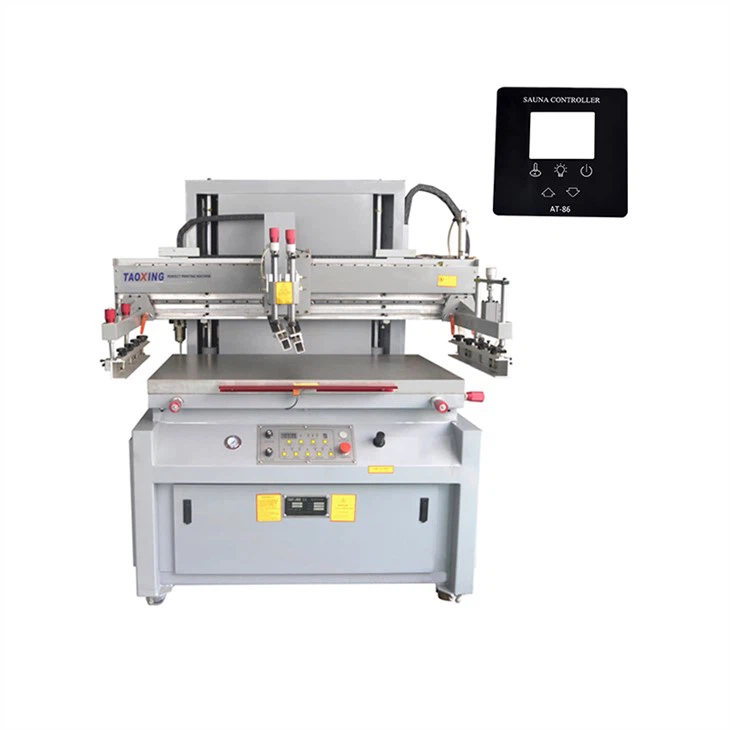

Aplication:
Semi auto Screen Printing machine is suitable for flat surface printing on printed circuit boards, Textile transfers, Paper , Stickers, Membrane switch,Signage, tempered glass, Wooden board, PVC film and so on.
Product Features:
1.Squeegee carriage on Hard Chrome Plated solid steel shaft with linear bearing motion.
2. Adjustable screen frame holder
3. Variable printing stroke length
4. Single/Double stroke selection
5. Parallel screen frame movement(Convenient for spot UV varnish and low viscosity inks to avoid ink spillage all over the screen)
6. Peel off mechanism (To achieve fine reproduction of halftone dots and avoid smudging, bleeding and smearing)
7.Adjustable squeegee angle from 0 to 30º
8.Aluminium extruded squeegee holder & coater for even pressure
9.Bed movement for registration x, y, & Rotary ±10 mm
10.Emergency Rod / Stop for safety of operator
11.Castor wheels for easy mobility
12.Printing operation by foot switch or automatic cycle, with dwell timer 0-10 sec.
Product Specification:
| Maximum screen frame size | 700*1000mm |
| Printing table size | 680*880mm |
| Maximum printing area | 580*700mm |
| Printing speed | 500-900 times/ hour |
| Air pressure | 6-8kg/㎝² |
| Voltage | 220V/50HZ |
| Power | 2.7KW |
| Weight | 400kg |
Machine size | 1200*1000*1650mm |
