Roll To Roll Stencil Screen Printer

Roll To Roll Stencil Screen Printer

1.Automatically unwinding.
2.With corrector to improve precision of material-pulling.
3.Vacuum printing table with micro holes.
4.Equipped with quality inspection unit.
5.Can be connected with UV curing machine or hot air circulating dryer oven.
Send Inquiry
Chat Now
Description

Application:

Screen Printing membrane switch, computer keyboard circuit, Heat seal connector, FPC, PET, PVC, non-woven fabric, IMD and other roll film.


Features:

1. Vertical structure electromotion machine is made up of feeding traction printing drying and collection.

2. PLC program control,machine operation interface precision alignment controlled

by photoelectric eye automatic detection monitoring function machine will shutdown and alarming

when it is abnormal

3. Aluminum parts printing beam machine nose halftone folder

4. Servo motor traction feeding with stable accurate speed

5. Inverter motor drive printing knife shelf quadrate linear precision guide rail adjust the speed

and stroke independently

6. Halftone is drived up and down by variable speed gear motor high precision and move smoothly

7. The overall grinding high strength and hardness platform with suction hole on it.

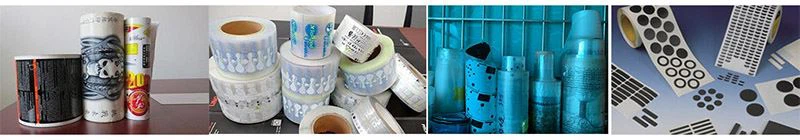

Printed Samples:

ali samples



Machine parameters:

Model

VT5070PR

Working

1000x660mm

Max inputting width450mm

Max printing area

600x450mm
Min printing area400x500mm
printing thickness

0.075-0.5mm

Printing precision

±0.1mm

Air pressure

4 - 6 kg/PSI

Air consumption

2.6L/cycle

Voltage

380V-50HZ

Power

5KW

Max size of screen frame

1100x800mm

Min size of screen frame

300x200mm

Mix print skip distance(mm)

2

One time printing speed(printing number/hour)1000-1200

Machine size

L3300mmxW1600mmxH2200mm

Machine weight1500kg


FAQ:

Q1. How can I know your machine works well?

A1: Before delivery, we shall test the machine working condition for you.


Q2. How can I pay my order?

A2: We accept 100% T/T, 50% deposit and 50% paid off before shipping.


Q3. Do you have a CE certificate?

A3: For every model of machine, it has a CE certificate. Your Satisfaction is Our Honor!


Q4. Can you send me the video to show how does the machine work?

A4: Certainly, we have made video of every machine and uploaded them to Youtube.
