A Complete Guide to High-Precision Industrial Printing

In today's manufacturing industry, precision is everything. Whether producing membrane switches, graphic overlays, automotive control panels, medical devices, or flexible printed electronics, even a slight registration error can result in product defects, increased material waste, and higher production costs.

This is where CCD alignment screen printing has become a game-changing technology.

Unlike conventional screen printing that relies on manual positioning or mechanical stops, CCD alignment screen printing uses intelligent vision systems to detect registration marks automatically and align every print with exceptional accuracy.

In this guide, we'll explain how CCD alignment screen printing works, its advantages, applications, and why more manufacturers are investing in this technology.

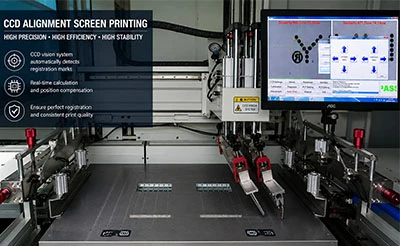

What is CCD Alignment Screen Printing?

CCD Alignment Screen Printing is an automated screen printing process that uses CCD (Charge-Coupled Device) cameras together with image processing software to locate registration marks on a material before each printing cycle.

Instead of depending on operators to position the material manually, the vision system automatically calculates the exact offset and compensates for any deviation before printing.

This enables highly accurate printing even when the material has shifted slightly during loading.

The result is:

Higher registration accuracy

Reduced operator dependence

Less material waste

Better production consistency

Higher productivity

How Does CCD Alignment Work?

The complete printing process generally consists of the following steps.

Step 1 – Material Loading

The sheet or roll material is automatically fed into the printing station.

Depending on the machine configuration, this may include:

Sheet feeding system

Roll-to-roll unwinder

Vacuum positioning table

Step 2 – CCD Camera Detects Registration Marks

Instead of relying on mechanical positioning pins, high-resolution CCD cameras search for pre-printed registration marks.

These marks are usually black crosses, circles, or customized fiducials printed during a previous process.

The cameras capture the exact coordinates within milliseconds.

Step 3 – Image Processing

The vision controller analyzes the captured image and compares it with the stored reference position.

The software automatically calculates:

X-axis deviation

Y-axis deviation

Rotation angle (θ)

Step 4 – Automatic Position Compensation

The servo positioning system automatically adjusts the printing table or printing head to compensate for the deviation.

No manual adjustment is required.

Step 5 – Precision Screen Printing

Once alignment is completed, the printing cycle begins.

Because the material has already been accurately positioned, every print maintains excellent registration.

Why Is CCD Alignment Better Than Manual Registration?

Traditional screen printing depends heavily on operator experience.

Small positioning errors may accumulate throughout production, especially during multi-color printing.

CCD alignment eliminates these problems.

Advantages of CCD Alignment Screen Printing

1. Exceptional Registration Accuracy

Modern CCD systems can achieve registration accuracy of ±0.03 mm or better, depending on machine configuration and application.

This is essential for industries requiring tight tolerances.

2. Reduced Material Waste

Automatic correction minimizes printing errors caused by:

Material expansion

Shrinkage

Feeding deviation

Manual positioning mistakes

Manufacturers often see a noticeable reduction in rejected products after adopting CCD alignment.

3. Higher Production Efficiency

Because the machine aligns automatically:

Setup time is reduced.

Operator intervention is minimized.

Productivity increases.

4. Excellent Repeatability

Whether printing the first sheet or the ten-thousandth sheet, the registration remains consistent.

This consistency is especially valuable in high-volume production.

5. Supports Multi-Color Printing

Each color can be aligned independently using the CCD vision system.

This ensures excellent color-to-color registration, even for complex graphics.

Industries That Use CCD Alignment Screen Printing

CCD alignment technology is widely used in:

Membrane Switch Manufacturing

Precise printing of conductive circuits, insulation layers, and graphic overlays.

Graphic Overlays

Ensures windows, logos, and embossed areas align perfectly.

Automotive Interior Panels

Printing icons, symbols, and decorative graphics on dashboard panels and control interfaces.

Medical Devices

Maintains high precision for medical labels and diagnostic components.

Flexible Printed Electronics

Supports fine-line printing for flexible circuits and electronic films.

Home Appliance Panels

Produces durable and visually appealing control panels for consumer electronics.

Roll-to-Roll vs Sheet-to-Sheet CCD Alignment

Roll-to-Roll

Ideal for:

Continuous PET films

Long production runs

High-volume manufacturing

Advantages:

Higher productivity

Lower labor cost

Continuous operation

Sheet-to-Sheet

Suitable for:

Thick materials

Graphic overlays

Nameplates

Small and medium production batches

Advantages:

Flexible material handling

High registration accuracy

Easy job changeover

Future Trends in CCD Alignment Technology

With advances in artificial intelligence and machine vision, modern CCD alignment systems are becoming even more intelligent.

Future developments include:

AI-assisted defect detection

Automatic print quality inspection (AOI)

Smart production data analysis

Remote diagnostics and predictive maintenance

Integration with Industry 4.0 manufacturing systems

These innovations will continue to improve efficiency and quality in industrial screen printing.

Why Manufacturers Are Upgrading to CCD Alignment

As customer expectations for quality continue to rise, manual printing methods are becoming less competitive.

Manufacturers are investing in CCD alignment systems to:

Improve product quality

Reduce production costs

Increase automation

Meet tighter customer tolerances

Enhance overall production efficiency

For industries such as membrane switches, graphic overlays, automotive electronics, and flexible printed electronics, CCD alignment screen printing has become the preferred solution for precision manufacturing.

Conclusion

CCD alignment screen printing has transformed modern industrial printing by combining machine vision with precision automation.

Compared with traditional manual registration, CCD systems deliver superior accuracy, better repeatability, reduced waste, and higher productivity.

Whether you manufacture membrane switches, graphic overlays, automotive panels, or flexible electronic products, adopting CCD alignment technology can significantly improve your production efficiency and product quality.

As industrial manufacturing continues to evolve, CCD alignment screen printing will remain one of the most important technologies driving precision printing forward.

Frequently Asked Questions (FAQ)

What does CCD stand for in screen printing?

CCD stands for Charge-Coupled Device, a high-resolution camera used to detect registration marks and automatically align the printing position.

What accuracy can a CCD alignment screen printing machine achieve?

Most industrial CCD alignment systems achieve ±0.03 mm or better, depending on the machine configuration and material.

Which industries benefit most from CCD alignment?

Industries including membrane switches, graphic overlays, automotive electronics, medical devices, HMI panels, and flexible printed electronics benefit significantly from CCD alignment technology.

Is CCD alignment suitable for roll-to-roll printing?

Yes. CCD alignment is widely used in both roll-to-roll and sheet-to-sheet screen printing systems.
