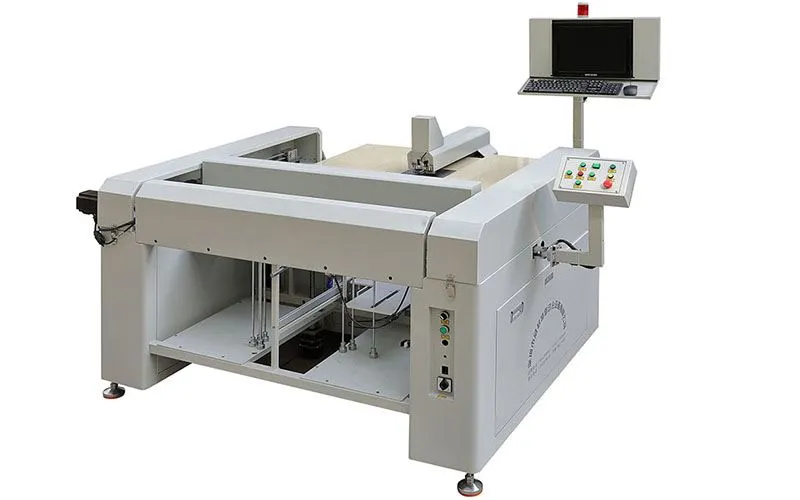

The basic composition and equipment composition of sheet-to-sheet automatic punching: mainly composed of three parts: feeding, host and receiving.
The innovation of the processing method: the materials are manually coded and placed on the feeding rack, and the feeding part sends the materials to the punching area one by one through the feeding system. After reaching the punching area, the host computer according to the preset punching parameters Finish processing the target shape that enters the field of view. This process is through the double-head punching process. After finishing the processing, enter the receiving rack and stack it into stacks. The main machine is conveyed by a conveyor belt, and the inside is equipped with a suction device that will not scratch the material. When the material falls into the receiving rack, the equipment turns on the air blowing system at the same time in the receiving part, so that the material can play a role of supporting when it falls into the receiving rack, and it also prevents the material from being scratched when it falls.
Suitable materials: general printing materials such as soft board, film, film, nameplate, paper, FPC, PET, PE, PC, PVC film, polyester, thin aluminum sheet and other sheets with right-angle edges.
Skills requirements:
1. The material is sheet material, and the material is stacked manually, and the material reclaiming system automatically reclaims, aligns, punches and unloads.
2. The punching can recognize various colors (including transparent color, white, light gray, color PANTON 1C and similar products.
3. The punching function can meet the punching accuracy of ±0.02mm, and the punching must be processed and punched with the center of the grasped circle or the intersection of the cross as the center.
4. There has single punching head and double punching heads, according to customer's product feature and requirement to choose the model, punching diameter: 1-5mm, punching thickness: 0.05-1mm.
5. The position of the punching head can meet the size of different materials, and it can punch through the whole material at 360° without dead corners.
6. The perforated platform is equipped with a fixed material device, and is equipped with suction and platform pressing materials.
7. Hole position supplementary capture: CCD capture positioning, automatic punch
