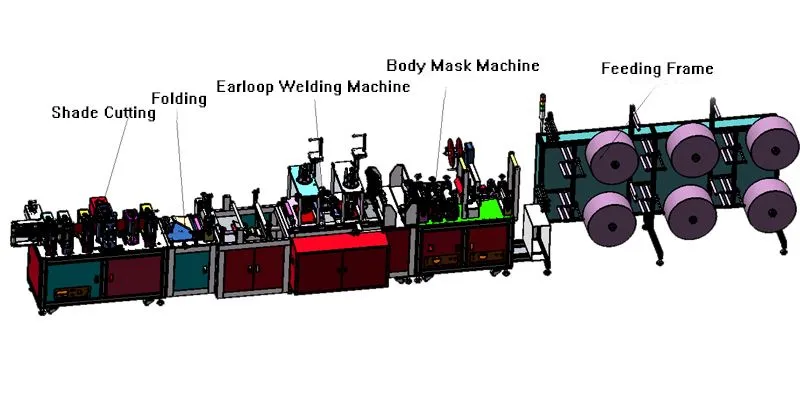

1、Machine Outlook(Subject to the final product)：
2.Scope Of Application:
This machine is suitable for non-woven fabrics, 99% melt-blown non-woven fabrics in the middle, and non-stick non-woven fabric outer layer.
Process:
1.First shape the outer layer of non-woven fabric for heat treatment, melt-blown and non-woven fabric together to make a sheath.
2.Three to five layers plus welding together to cut the edge.
3.Welding ear belt, welding nose line and other processes.
The whole machine from the raw material feeding to the insertion of the nose line, edge banding, and cutting the finished products are all in one line.
The N95 mask production equipment has stable performance, high output, low defect rate and easy operation.
Reference product specification: ZKG9501, executive standard: GB2626-2006 national standard.
3. Machine Characteristics And Performance
1.Fully automatic feeding system.
2.Aluminum alloy frame, firm and beautiful, ensuring accurate size of finished product.
3.Stainless steel fixture, adjustable left and right.
4.Tension wheel setting to adjust the tension of the fabric width, so as to effectively ensure the beauty and smoothness of the finished product.
5.Independent nose line conveyor group, convenient for adjustment and maintenance.
6.Ultrasonic automatic heat sealing to ensure stable welding quality.
7. Automatic forming and discharging, suitable for rapid production.
Note: No breathing valve, no logo transfer, no seals, etc.
4.The Main Technical Parameters:
| No. | Main Project Content | The Main Technical Parameters |
| 1 | Working Power | 220V ± 5%, 50HZ, 3-phase 5-wire system |
| 2 | Equipment Power | about 15kw |
| 3 | Compressed Air | 0.5~0.8mpa,primary drying and filtration |
| Flow Using：about 380L/min | ||
| 4 | Use Environment | Working temperature: 0 ~ 40 ° C |
| Humidity: 40 ~ 65% HR | ||
| No flammable gas, corrosive gas | ||
| Workshop is dust-free (not less than 100,000 level) | ||
| 5 | Operating Height | 1200mm |
| 6 | Productivity | 30 ~ 40 pcs / min (excluding refueling time) |
| 7 | Fold Symmetry | ±2mm |
| 8 | Main Dimensions Of Equipment | 9,850x1,200x2,000mm |
5.Main Compnents Configuration Reference:
| No. | Main Project Content | Brand |
| 1 | Pneumatic Components | SMC OR AIRTAC |
| 2 | Server System | Mitsubishi or Siemens |
| 3 | PLC Programmable Controller | Mitsubishi or Siemens |
| 4 | HMI | WeinView |
| 5 | Motor | China |
| 6 | Sensor | Omron |
| 7 | Frequency Converter | Delta, Mitsubishi |
| 8 | Ultrasonic Components | 20KHZ（or 15KHZ |
| 9 | Forming Molding | Prevail |
| Low-voltage Electrical Appliances, Indicator Lights | Schneider, Omron |
