Applicable Scope

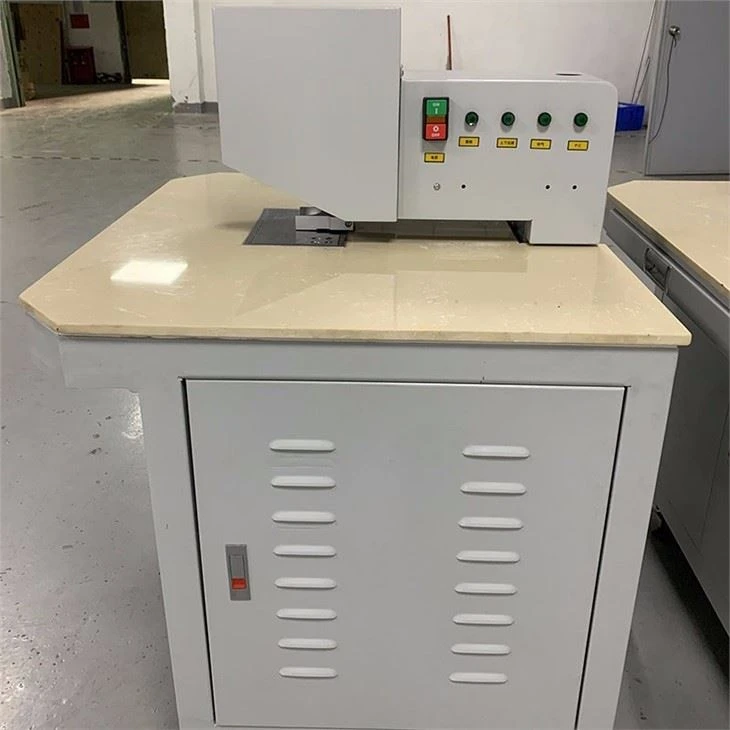

This semi-auto CCD target hole drilling machine is perfect for single & double panel, PCB multilayer board, fiberglass board, composite board, PVC panel, acrylic board and other fragile plastic.
The Features of Drilling Machine
1. This product absorbs the advantages of foreign flexible printed circuit drilling machine, combines with the characteristics of Chinese circuit board production with fine design.
2. Adopt granite panel, anti-wear, practical, with beautiful appearance, rational structure, convenient operation, high drilling precision, etc.

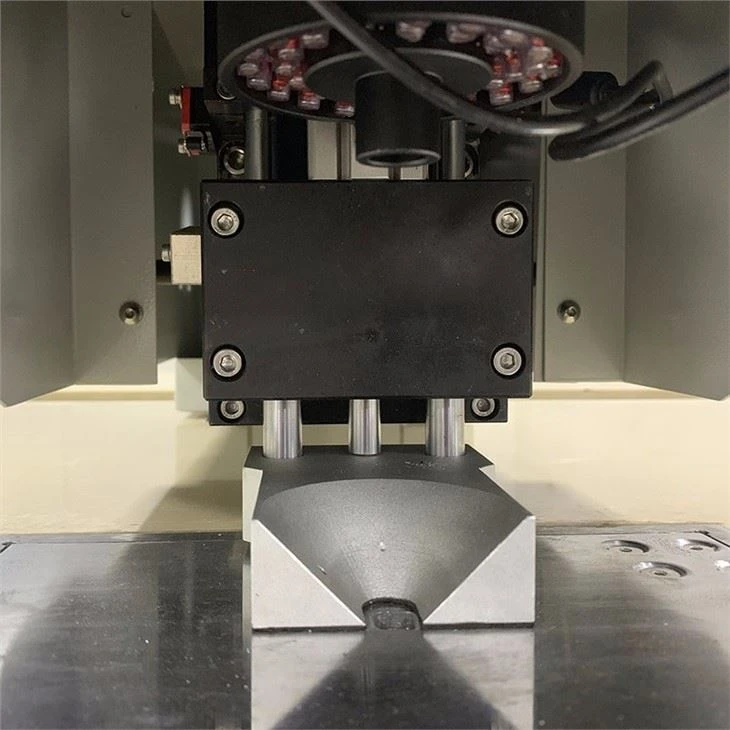

3. Adopt reflected light and transmission light optional function and second reread, which greatly improves the drilling precision; LCD display, which is favourable for long-term operation.
4. This product applies the technology processing of SCM, which can automatically identify object with more stable performance.
5. Adopt water cooling system, which prolongs the service life of electric motor.
Technical Parameters
| Tooling material | SKD11 steel |
| Control System | VT position punching system in English |
| Hole diameter | 0.1mm-3.0mm(Acrylic/PVC) |
| Drilling precision | ±0.02mm |
| Drilling speed | 0.6s/hole |
| Max material width | 0.1-10mm(depend on substrate) |
| Max rotating speed | 24000-42000run/min |
| Drilling method | Drilling from bottom to up |
| Air pressure | 0.4-0.8Mpa |
| Machine dimension | W160mm*D850mm*H(770+260)mm |
| Weight | 228±2kg |
| Waste disposal | With vacuum cleaner |
| Power supply | AC220V±10V-50HZ 0.5KW |
