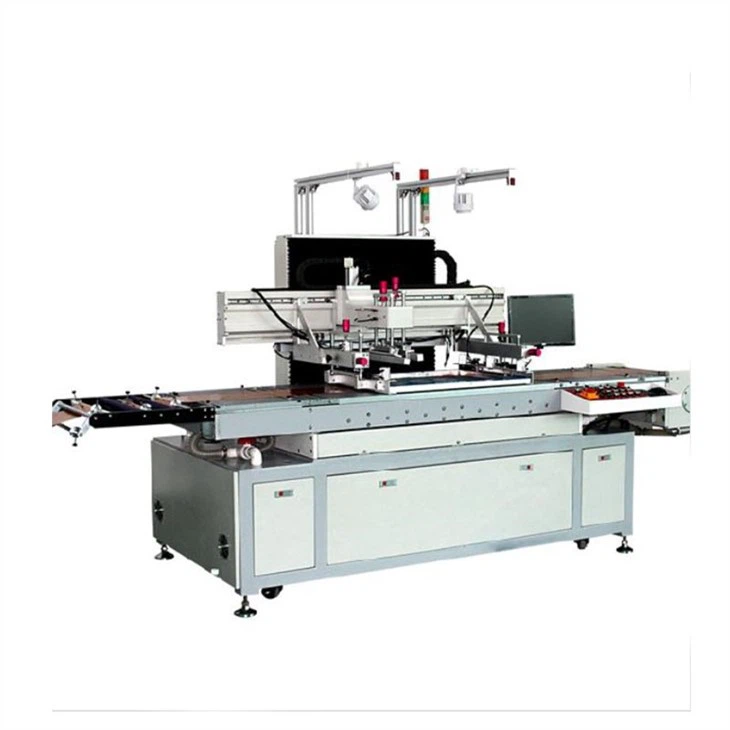

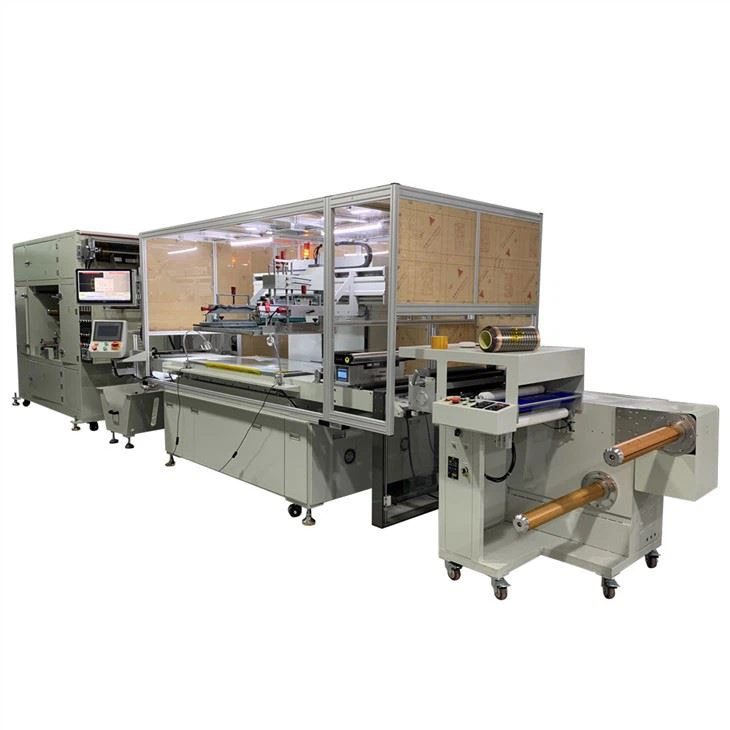

Roll To Roll Screen Printing Machine

Applicable range:

This machine machine is suitable for label printing, graphic overlays, transfer paper, texile, fabric, flexible circuit, polyester, diffusion membrane, menbrane switch and other solf roll material.

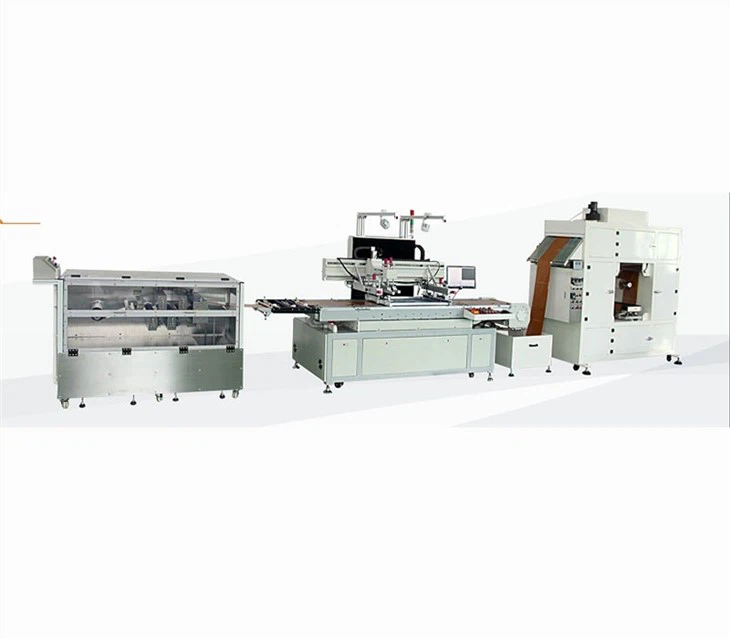

Roll to roll CCD vision automatic alignment screen printing machine, a printing line comprises of a feeder, a printer and a dryer oven. Printer and dryer connected together to be a completed processes is the best mass-produced selection. We have the reversed direction wed feeding model ensure one people is able to supervise two machines.

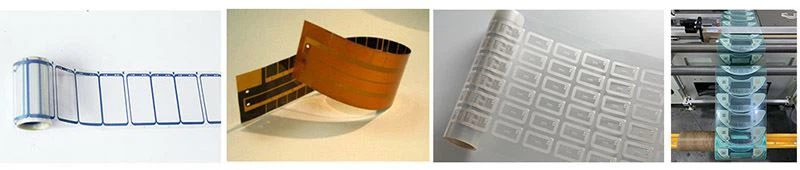

Printed samples:

Machine parameters:

Printer features:

1. Automatically feeding, can be equipped with electrostatic, dust cleaning roller;

2. Equipped with corrector, it can correct the position of pulling to ensure the precision;

3. Vacuum suction table, fixing material on the table after releasing by manipulator;

4. CCD visual alignment system, high precision positioning and printing;

5. It can be equipped with quality inspection unit to check the quality automatically after printing;

6. Printer screen adopts pneumatic clamp, it is convenient and easy to load and unload the screen.

7. The angle of squeegee and scraper are adjustable.

8. Selectable print cycles flood first & then print or print first & then flood.

9. Three operation modes, full automatic, semi-auto and manual.

Certificates:
