Applicable Scope

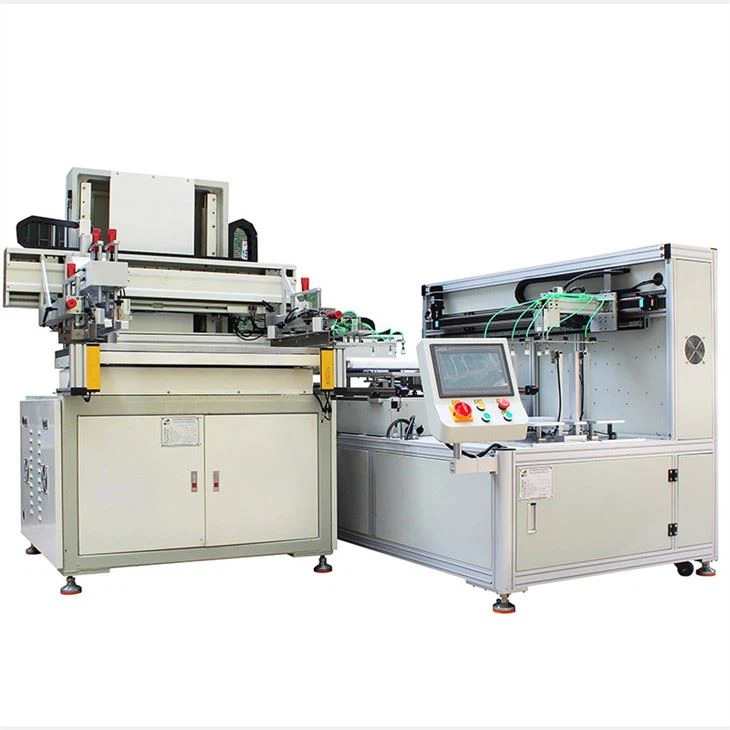

This automatic silk screen printer equipment is suitable for printing PC composite board, Acrylic sheet, PCB circuit board, membrane switch, mobile phone panel, PET sheet, Nameplates, Intelligent cards, Automotive speedometer and other thick substrate .

Screen Press Features

1. The printing is automatically counted, and the machine will stop and alarm when the set quantity is reached.

2. It is equipped with automatic shutdown alarm function for no material and machine failure.

3. The movement of the squeegee is driven by a servo motor, the ink return, the printing position and speed can be set separately, the ink return is even, the printing is stable, the printing is clear, and the color difference and the missing dots are not easy to appear.

4. Equipped with an automatic dust removal function, which can remove the dust on the printed matter and effectively improve the pass rate of the product.

5. Equipped with an off-screen function, the screen will follow the squeegee to separate from the printed matter during printing. The fine print dots are clear during fast operation, and it is not easy to stick to the screen. It is suitable for large-area background patterns, glue and other special inks.

6. This machine is equipped with manual and automatic suction function, and the suction strength is adjustable.

7. Equipped with a separate squeegee pressure adjustment device to ensure that the squeegee pressure is stable, improve the accuracy of the set position, stability and the reducibility of the printed pattern.

Technical Parameters

Printing table size	500*700mm
Max printing area	380*500mm
Max frame size	800*1000mm
Max printing speed	650 P/H
Voltage	380V—50Hz
Power	5KW
Air pressure	5～6kg/cm2 PSI
Edge alignment accuracy	±0.5mm
Printing precision	±0.1mm
Machine size	L2200xW1900xH2200mm
Machine weight	1200kg
